CRANES » CRANE M90 HD

Main specs overview

  • Model name
  • CRANE M90 HD
  • Category
  • CRANES
  • Max lifting load
    (ton)
  • 90
  • Max lattice boom height
    (mm)
  • 57.900
  • Max-min working angle
  • 84° - 15°
  • Weight
    (ton)
  • 96 *

More details

Description

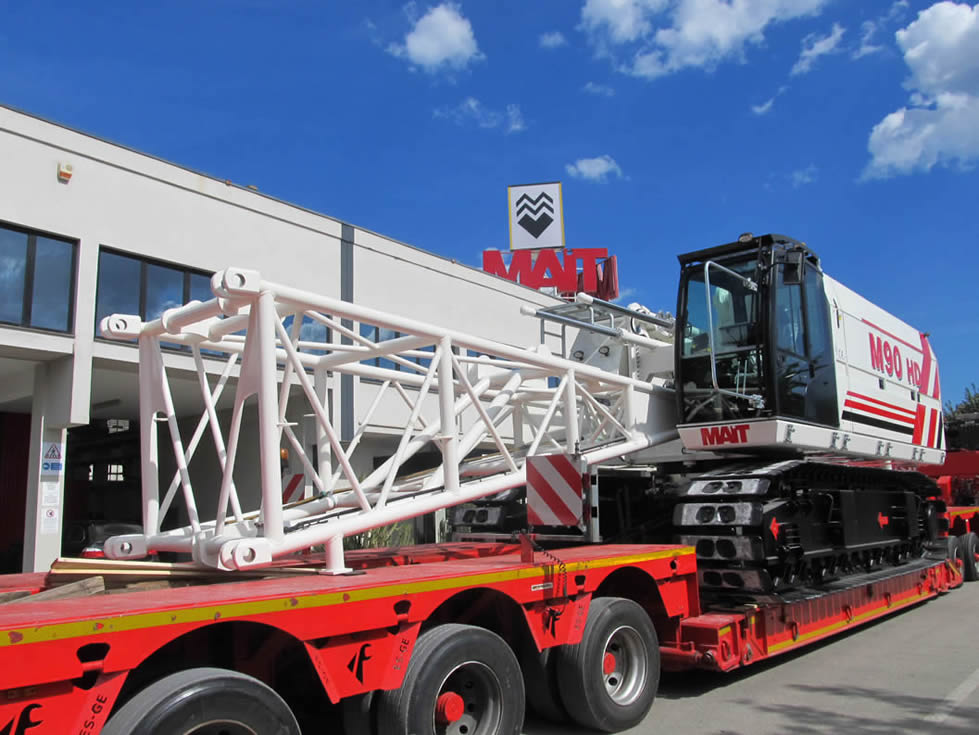

The M90 HD crane is an hydraulic crane on crawlers with lattice boom for all type of applications. The crane is ideal in construction jobsites due to their crawler base.
A typical utilization for foundation works, is the lowering of reinforcement cages, tremie pipes
Various lattice boom length configurations are avalaible for each M90 HD crane.
The operating weight changes in accroding the machine set-up.

Technical data

Engine
Brand CATERPILLAR
Model C15
Power 403 KW / 548 HP
Fuel tank 1000 l
Winches
Winch 24 t
First layer pull up 235 kN
Rope diameter 30 mm
Line speed 0 - 100 m/min
Slewing ring
2 hydrauilic gearmotors
Rotation speed 0-4 rpm
Hydraulic system
All functions of the machine can be operated simultaneously.
Max pression 320 bar
Hydraulic oil tank 1200 l
Undercarriage
Extendable undercarriage
Smooth soles or triple grouser shoes
Speed < 2 km/h
Optionals
Synchronization of winches 1 and 2.
Automatic closing of mechanical two ropes grabs
* Operating weight
CRANE M90 HD Base, with two free-fall winches of 24t, basic boom 13,1m, counterweight 22.8t, 21t hook block, soles 800mm smooth fusion 96000kg.
The operating weight changes according to the machine set-up

Working characteristics

Lifting and handling
Max lifting load 90 t 198,416 lbs
Max lattice boom height 60 m 197 ft
Base aparatus rotation speed 0 - 4 rpm
