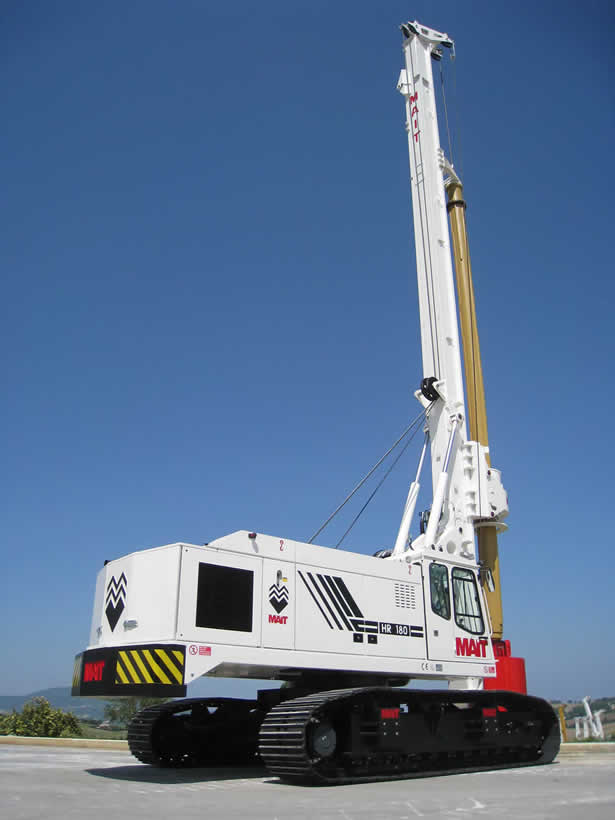

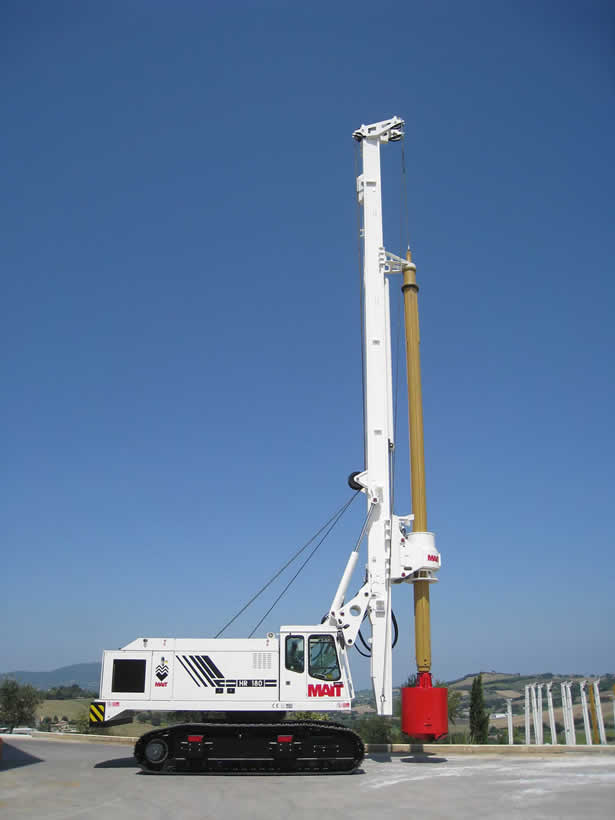

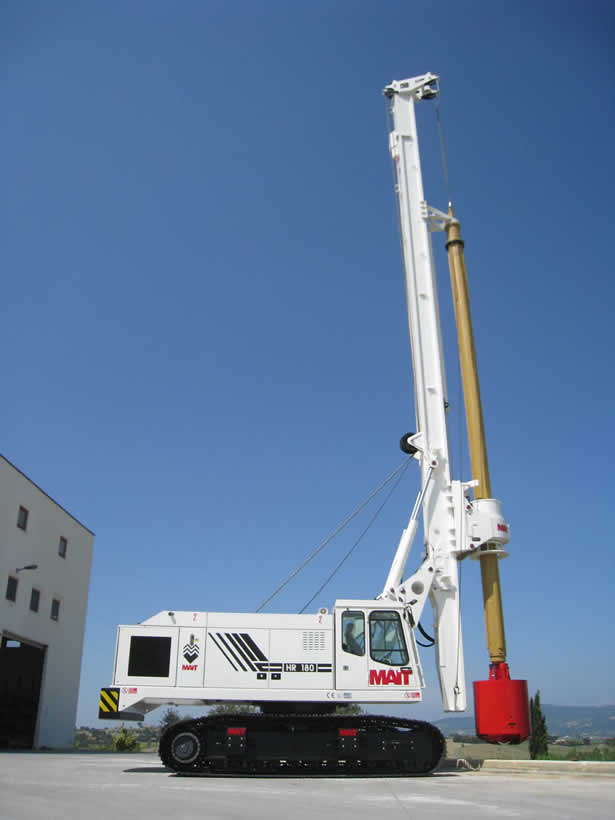

BORED PILES » HR 180

Main specs overview

  • Model name
  • HR 180
  • Category
  • BORED PILES
  • Max torque
    (KNm)
  • 233
  • Max Diameter
    (mm)
  • 1600
  • Max Depth
    (m)
  • 60
  • Weight
    (ton)
  • 57 - 60

More details

Description

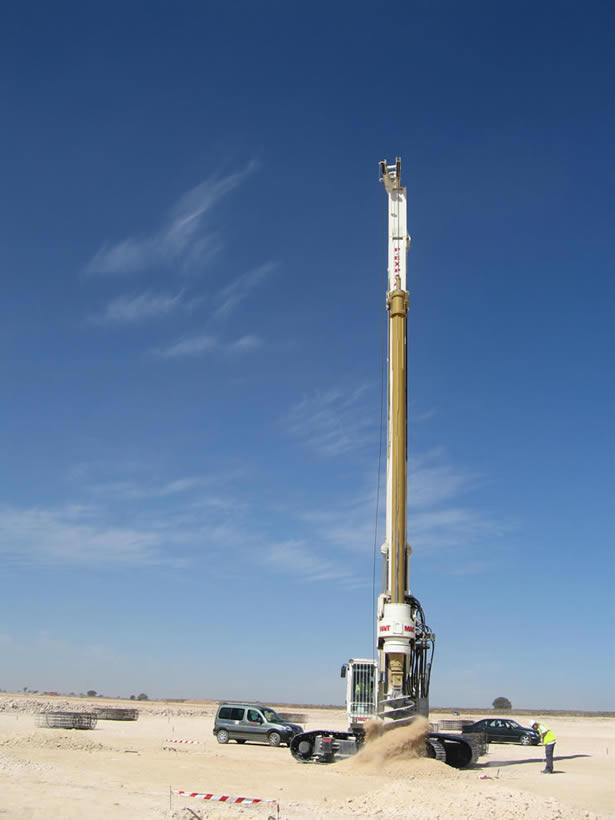

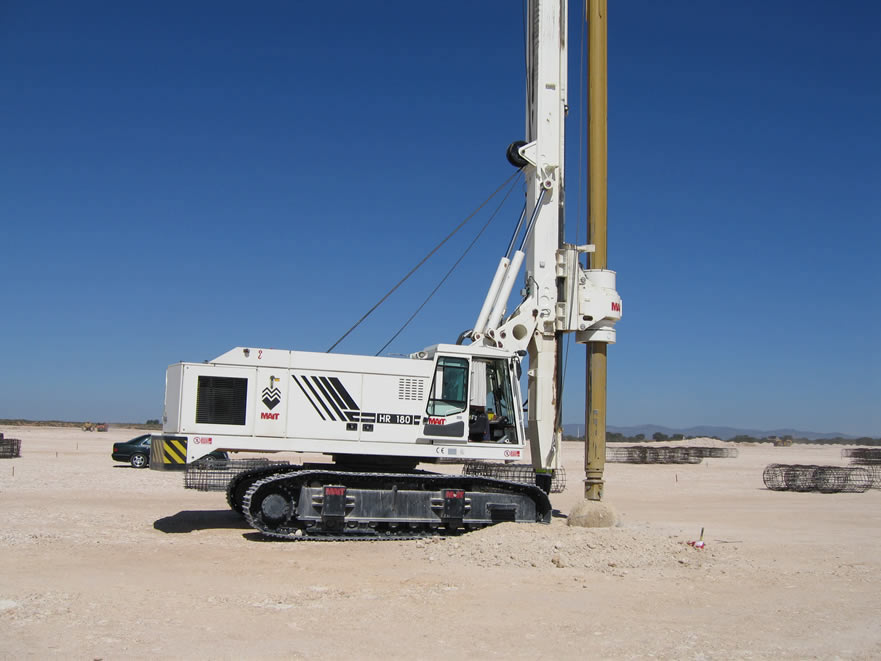

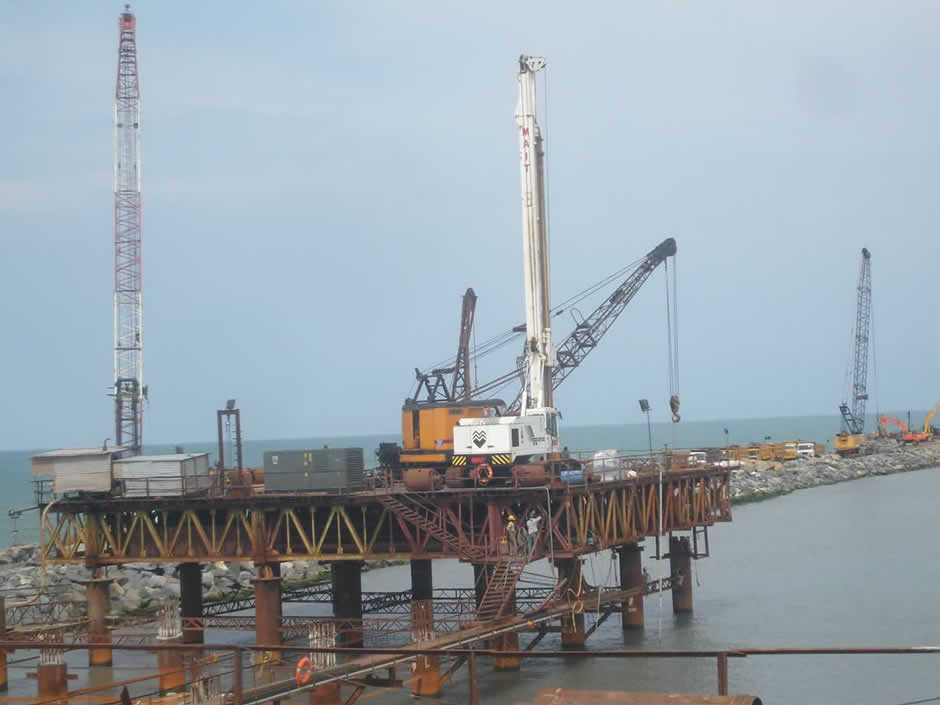

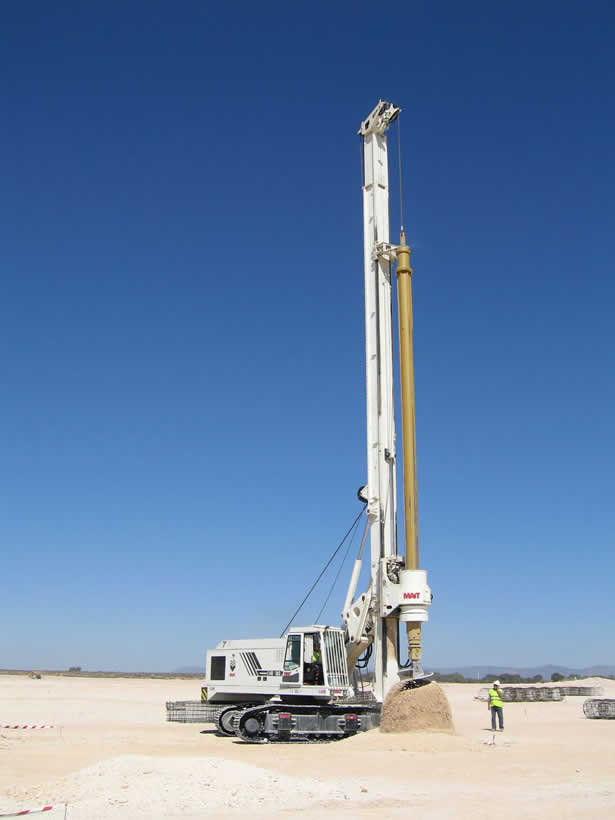

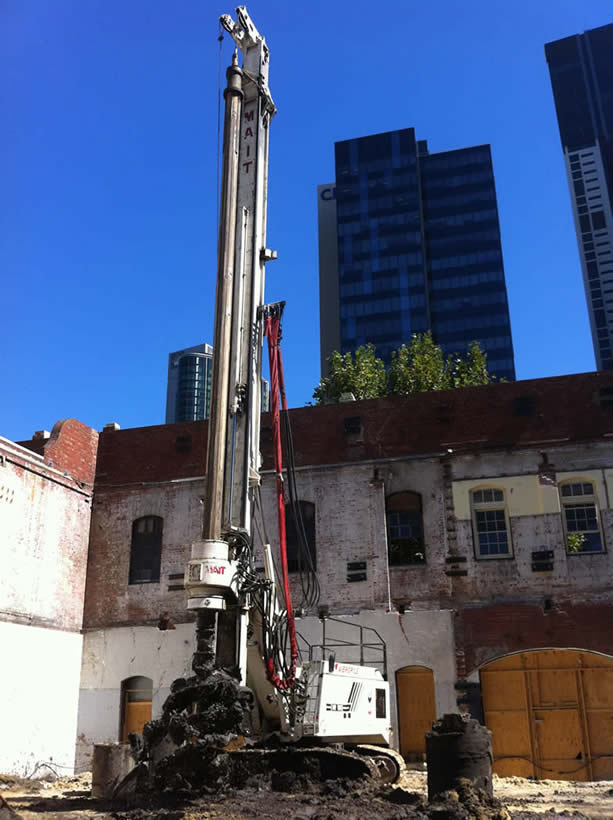

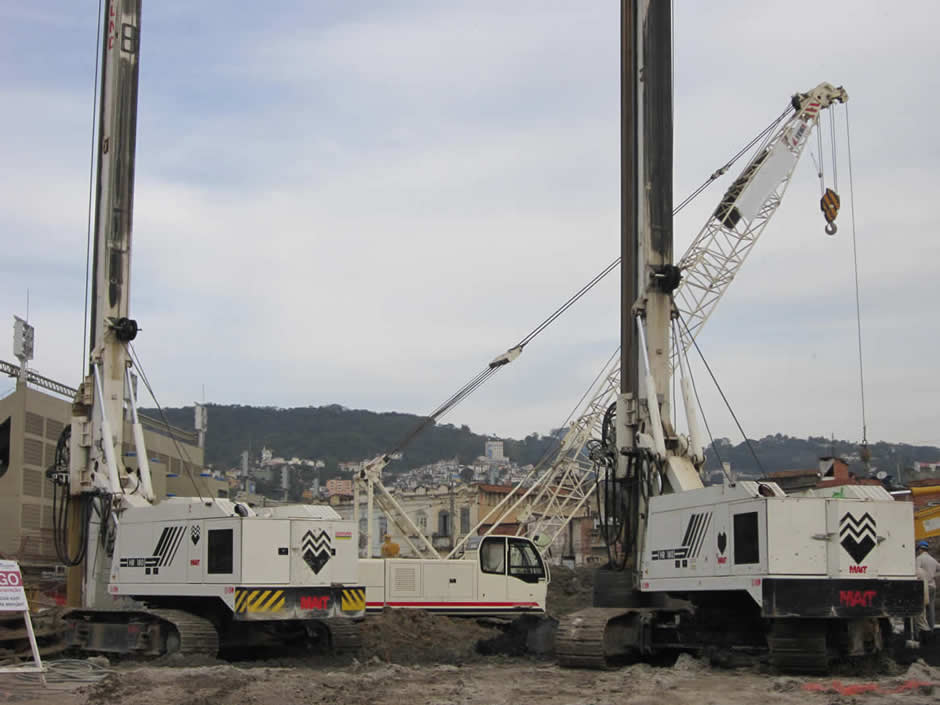

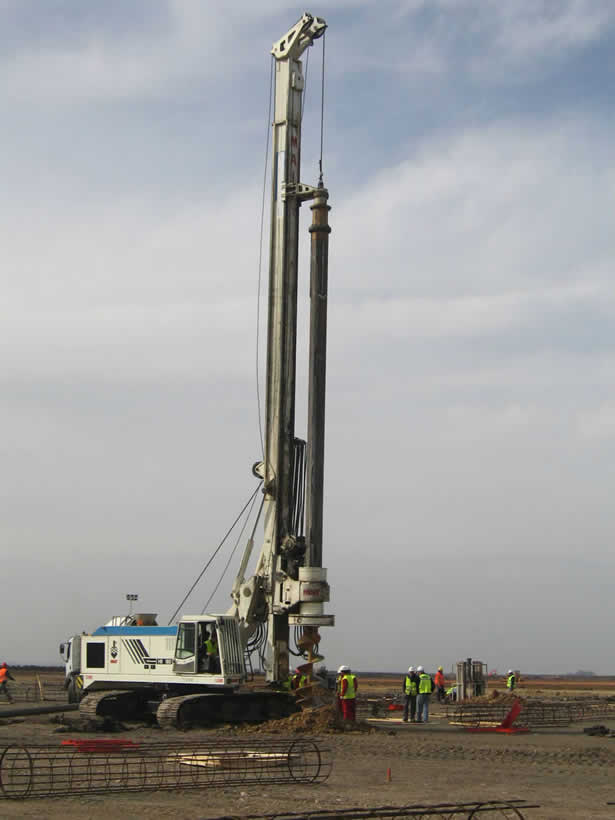

The HR 180, one of our most sold models, because of its versatility, and it is easily adaptable to many different applications such as:

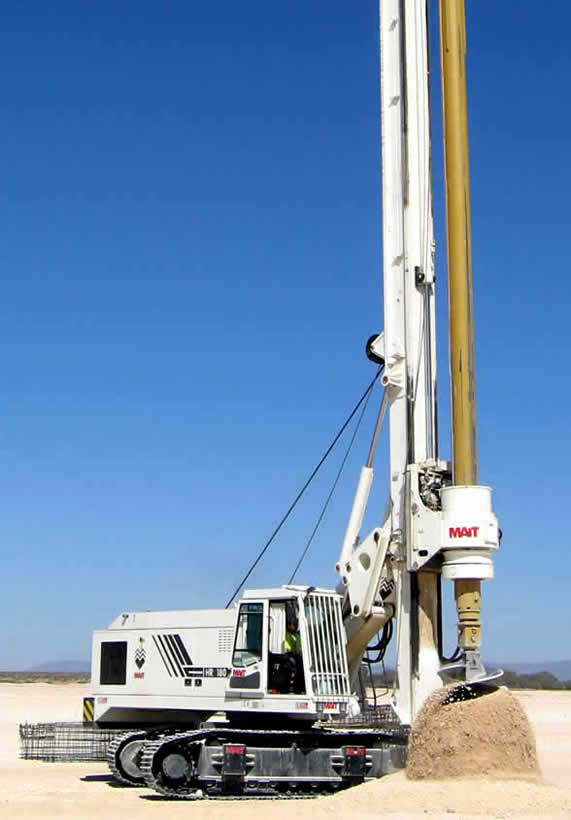

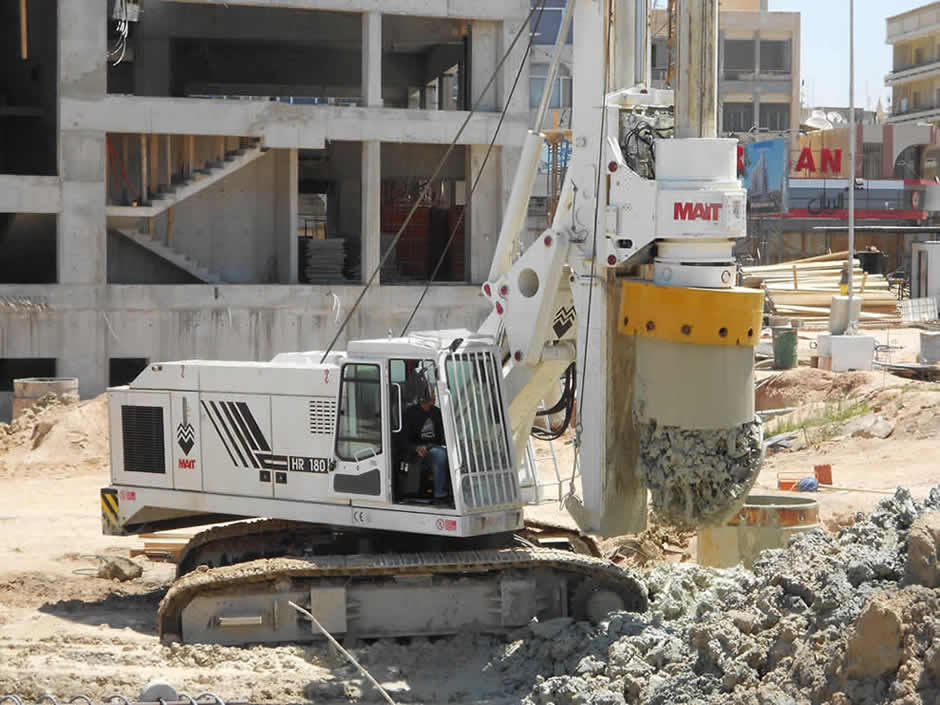

- Drilling with augers or buckets
- Execution of drilling casings directly with rotary and by casing oscillator
- Continuous Flight Auger (CFA)
- Diaphragm Walls
- Execution of Double Head drilling
The HR 180 is available in two versions:

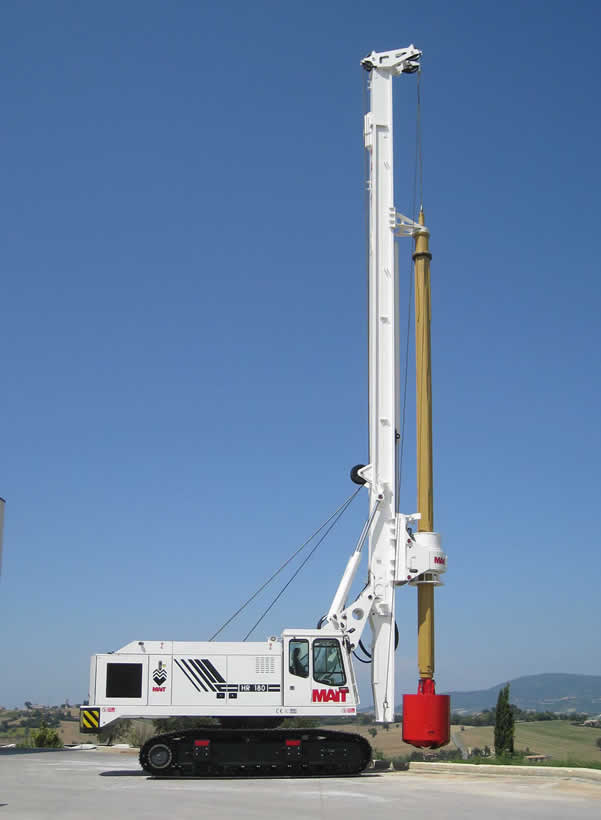

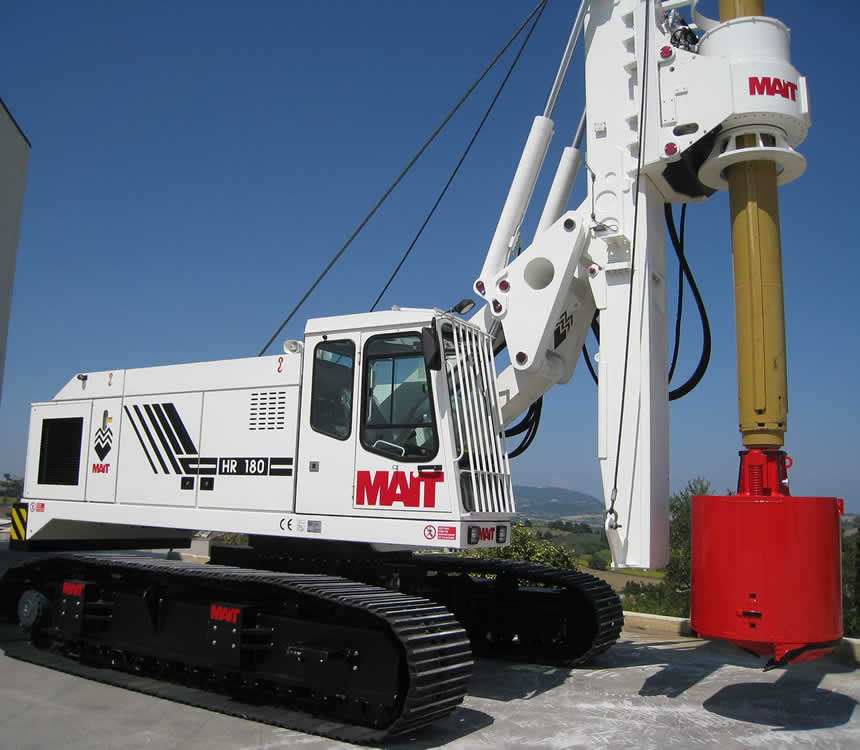

HR 180 CP – the standard version, is equipped with a Pull-down Cylinder which exerts it’s force on the rotary, and is principally utilized for drilling large diameter bore holes. The rotary is able to work with a stroke of 5.100 m (17 ft) approx.

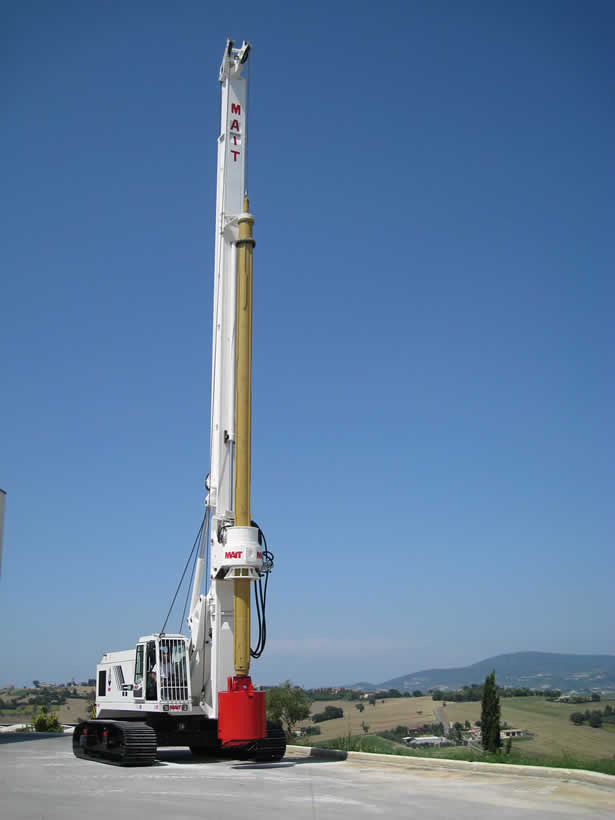

The HR 180 CP uses a parallelogram system of articulation. HR 180 THD – available upon request, The THD system moves the rotary by utilizing the winch, allowing the rotary to be used along a larger stroke of the mast, 10 m (33 ft) approx.

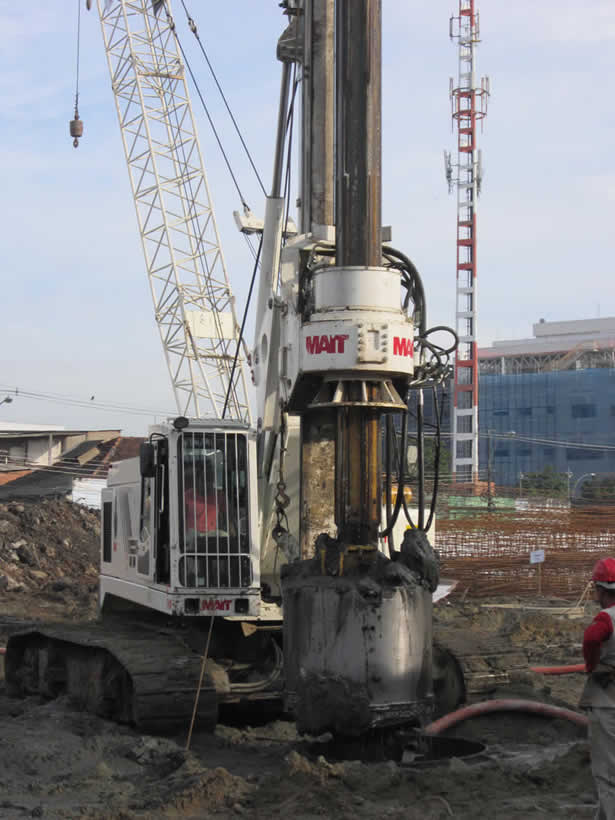

The THD version is particularly useful for driving and extracting casing tubes directly by the rotary, and without a doubt increasing your daily productivity. The HR 180 drilling rig base is already predisposed for all the various works listed above.

Technical data

Rotary
Nominal Torque 233 KNm 171,900 lbsft
Rotary nominal pulldown 180 KN 40,500 lbs
Unloading speed 150 rpm
Stroke 5.100 mm (CP version) 10.000 (THD version) 16.7 ft (CP version) 32.8 ft (THD version)
Winches
Main Winch Nominal Pullback 180 - 230*KN 40,500 - 51.750* lbs
Secondary Winch Nominal Pullback 80 KN 18,000 lbs

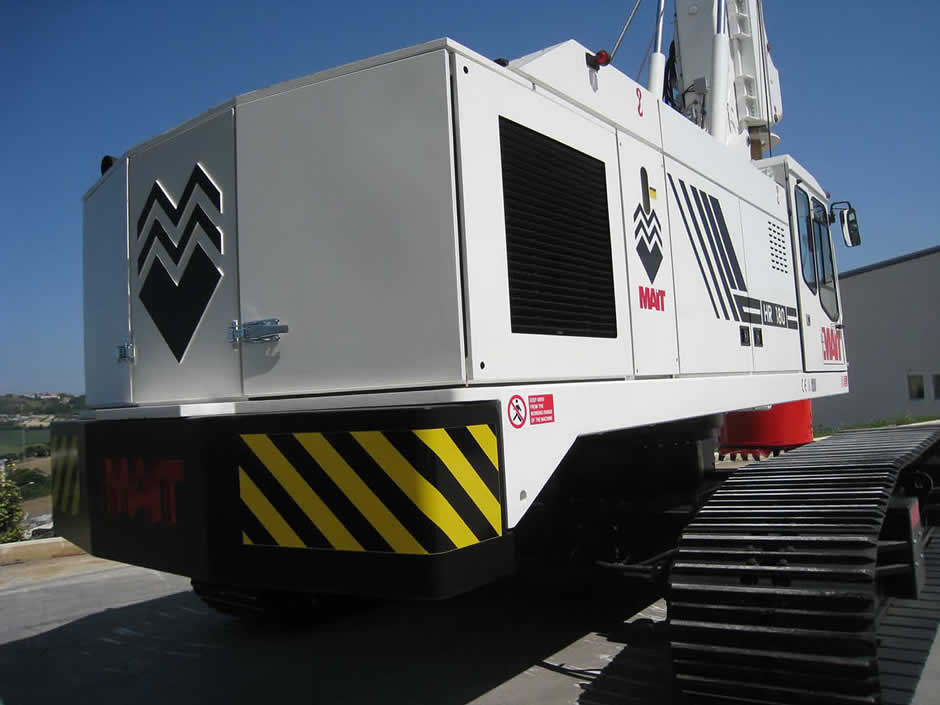

Engine
Brand CATERPILLAR
Model C9
Power 242 KW @ 2.100 rpm 325 HP @ 2,100 rpm
Hydraulic system
Hydraulic Oil tank 800 liters 211 gal
Fuel Tank 430 liters 114 gal

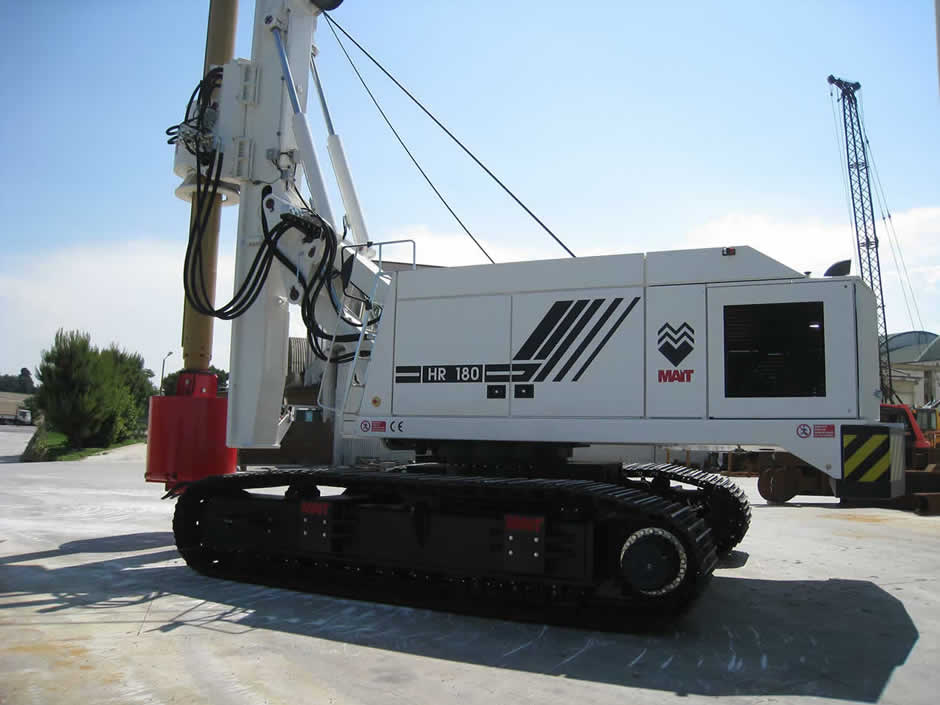

Crawler
Length 4.900 mm 16.1 ft
Width 3.000 - 4.300 mm 9.8 - 14.1 ft
Shoes 800 mm 2.6 ft

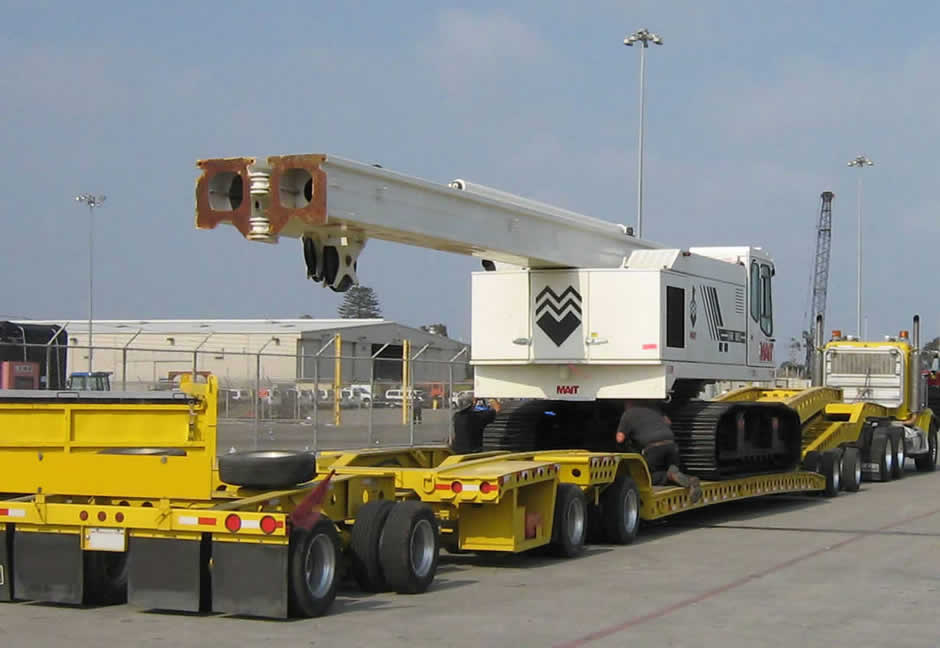

Weight
Approx weight 57 - 60 ton 128,600 - 132,500 lbs

Working characteristics

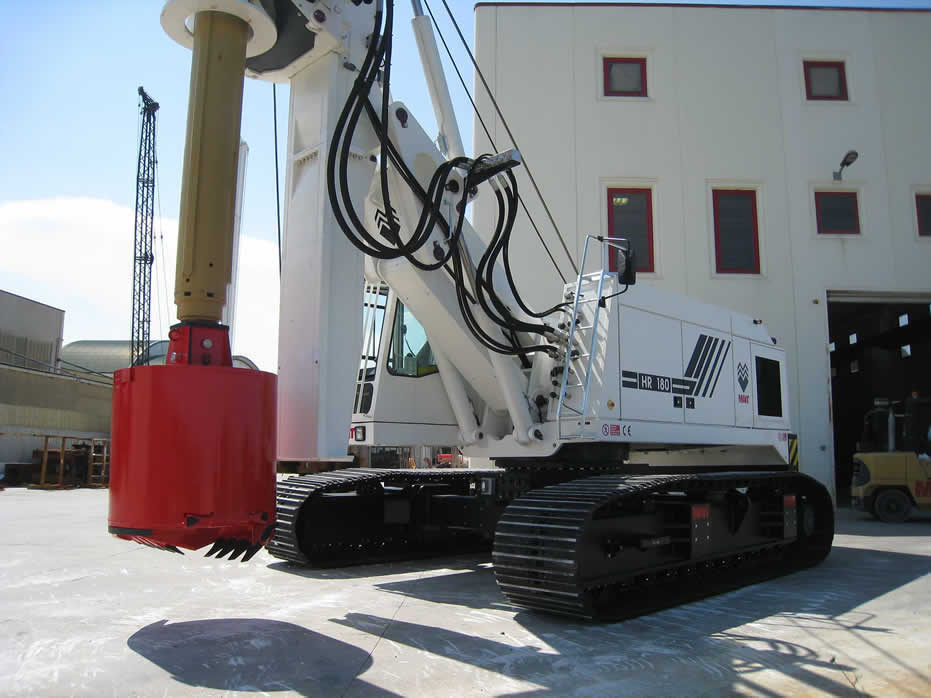

Works with Augers & Buckets
Max Diameter (without lower mast extension) 2.000 mm 6.5 ft
Max Diameter (without casing) 2.000 mm 6.5 ft
Max Diameter (with casing) 1.600 mm 5.2 ft
Depths 30 - 40 - 50 - 60 m 98.5 - 131 - 164 - 197 ft
Works with Casing Oscillator
Max Diameter 1.600 mm 5.2 ft
