BORED PILES » HR 40

Main specs overview

  • Model name
  • HR 40
  • Category
  • BORED PILES
  • Max torque
    (KNm)
  • 45
  • Max Diameter
    (mm)
  • 900
  • Max Depth
    (m)
  • 24 - 26*
  • Weight
    (ton)
  • 15

More details

Description

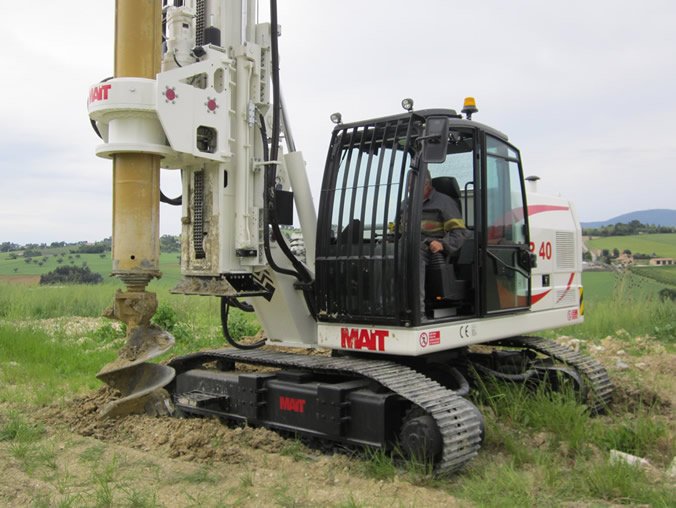

The HR40 is powerful yet simple, and is capable of performing multiple types of drilling for small to medium diameter piles.
Compact and easily converted from standard kelly bar version to CFA version, the HR40 allows you to switch from one to type of drilling to another in no time with the simple addition of a few components.
The HR40 can be mounted on crawler or truck according to customer requirements.
The large cabin is very spacious and comes complete with every comfort.

Technical data

Rotary
Nominal torque 45 KNm 33,190 lbsft
Nominal Pull-Back/Pull-Down 80 KN - 80 KN 17,985 lbsft - 17,985 lbsft
Unloading speed 100 rpm
Stroke 4.700 mm 15.4 ft
Winches
Main Winch Nominal Pullback 52 KN 11,690 lbs
Secondary Winch Nominal Pullback 16.5 KN 3.709 lbs
Engine
Brand DEUTZ
Model TCD 3.6 L04
Power 80 KW 107 HP
Mast
Stroke 1.320 mm 4.33 ft
Crawler
Length 3.300 mm 10.9 ft
Width 2.300 - 2.800 mm 7.5 ft - 9.2 ft
Shoes 450 mm 1.5 ft
Weight
Approx Weight 18 tons 40.320 lbs

Working characteristics

Works with augers & buckets
Max diameter 900 mm 3 ft
Depths 24 - 26* m 78.7 - 85.3* ft
