DIAPHGRAMS » HR 120 DW

Main specs overview

  • Model name
  • HR 120 DW
  • Category
  • DIAPHGRAMS
  • Diaphragm walls kit available
  • TR
  • Max dimension
    (mm)
  • 800 x 2.500
  • Max depth
    (m)
  • 20
  • Weight
    (ton)
  • 28

More details

Description

The HR 120 is a multipurpose compact drilling rig  suitable for medium to large diameter drilled shafts for drilling in any kind of soil by using a rotary system with kelly bar, augers and buckets.  The HR 120 utilizes friction or interlocking kelly bars for various depths.  The cabin has been designed to offer maximum efficiency and comfort for the operator which can also be equipped with an electronic depth counter, automatic levelling system, and  air conditioning and heating system.  The HR 120 comes mounted on expandable crawlers, but can even be mounted on a truck.  In either version, the kelly bar does not have to be removed for transport, which decreases the transport costs, and set-up time on the jobsite.
The HR 120 can be configured for works for Bored piles, Continuous Flight Auger (CFA), and even Diaphragm Walls by use of kelly.

Technical data

grab kit
type guided with telescopic square section rod, rotation ± 10°
winches
1st winch nominal pullback 120 KN 26,500 lbs
2nd winch nominal pullback 72 KN 16,000 lbs
engine
brand CATERPILLAR
model C6.6
power 129 KW @ 2.200 rpm 173 HP @ 2,200 rpm
hydraulic system
hydraulic oil tank 460 lit 121 gal
fuel tank 145 lit 38 gal
crawler
length 4.180 mm 13.7 ft
width 2.500 - 3.600 mm 8 - 12 ft
shoes 600 mm 2 ft
weight
approx. weight 28 ton 62,000 lbs

Working characteristics

Diaphragm Walling
Max Size 800 x 2.500 mm 2.6 x 8 ft
Depths 20 m 65.5 ft

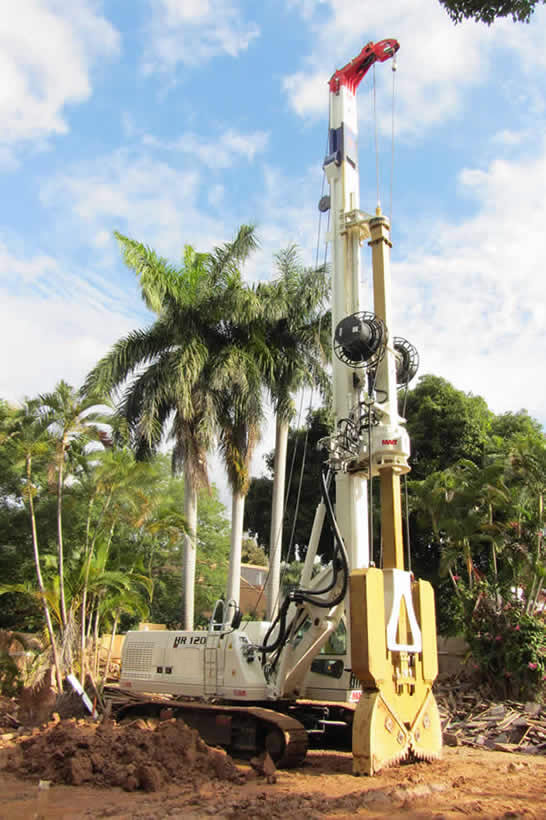

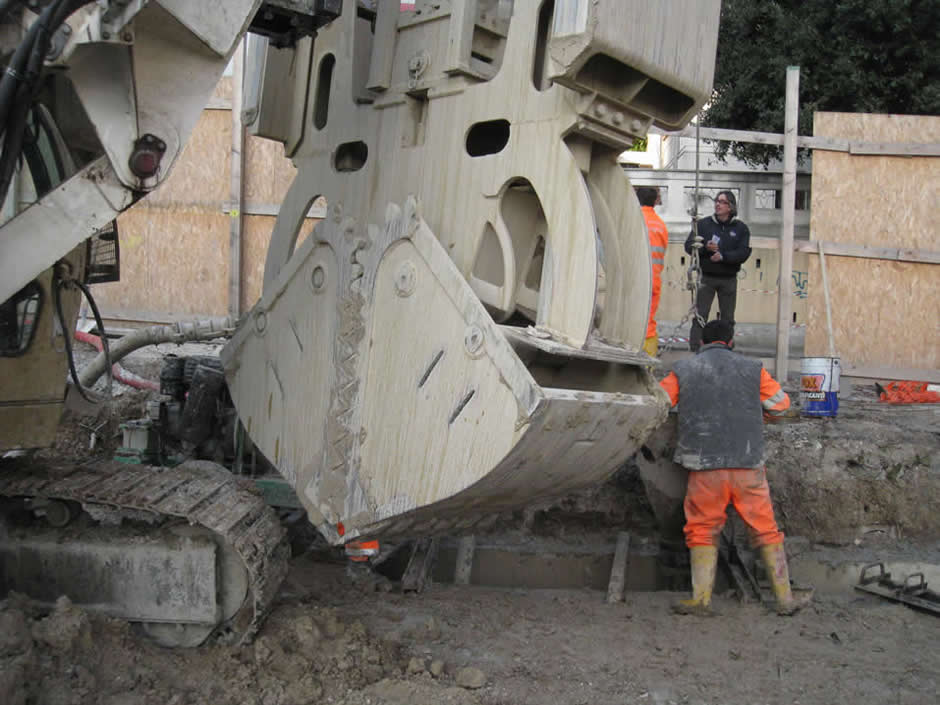

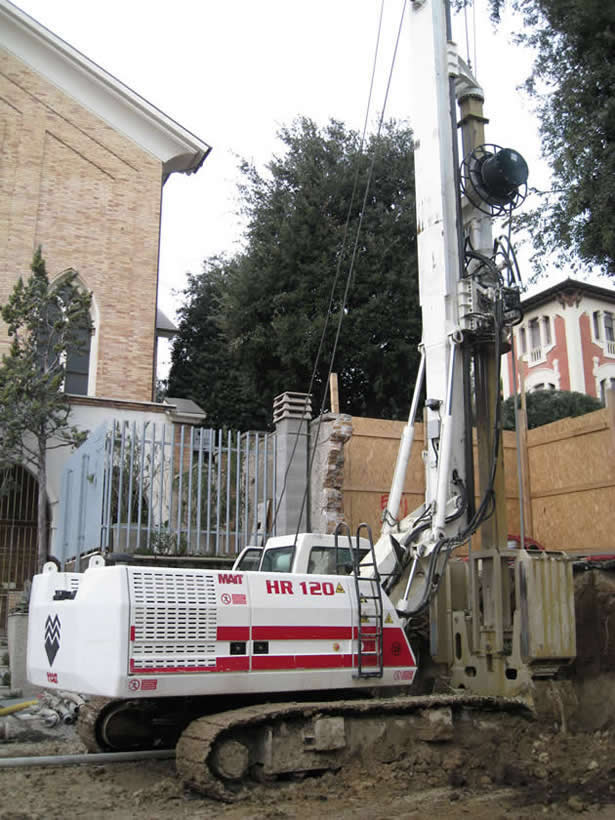

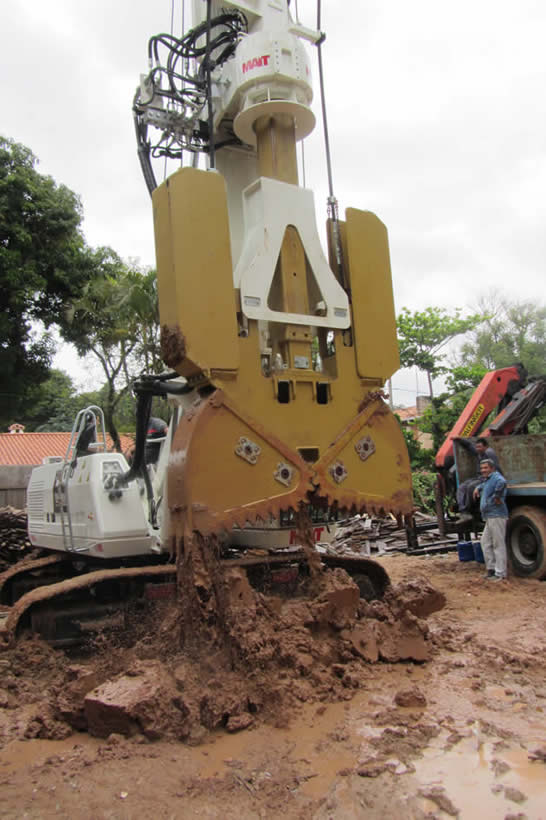

Media Gallery
