PILE DRIVING » HR 300-570 THH

Main specs overview

  • Model name
  • HR 300-570 THH
  • Category
  • PILE DRIVING
  • Max hammer weight
    (ton)
  • 22,5
  • Max pile length
    (m)
  • 24
  • Max pile weight
    (ton)
  • 8
  • Weight
    (ton)
  • 105

More details

Description

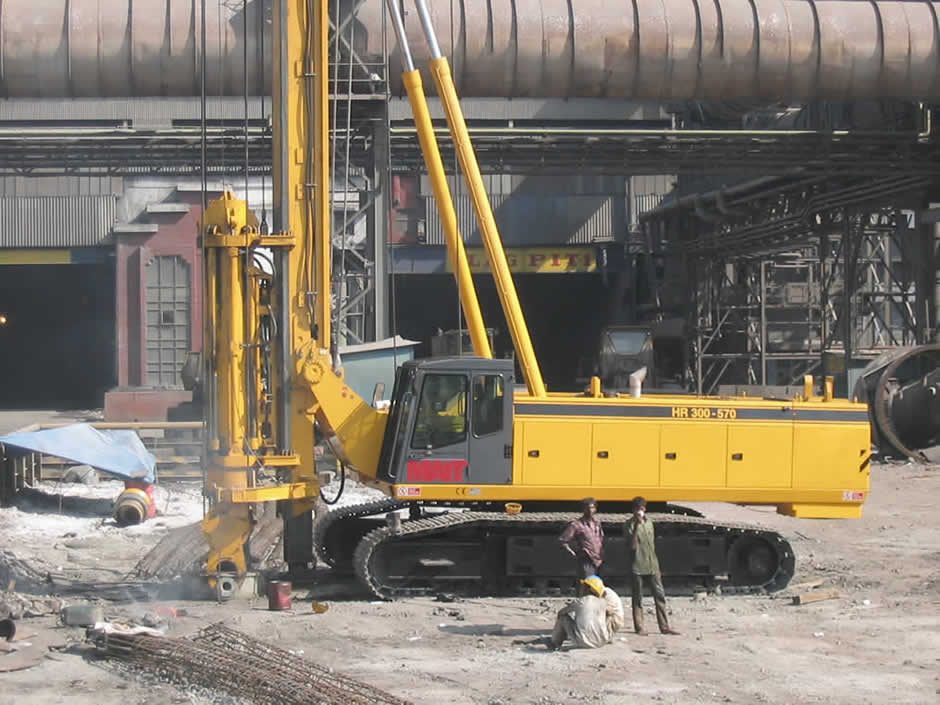

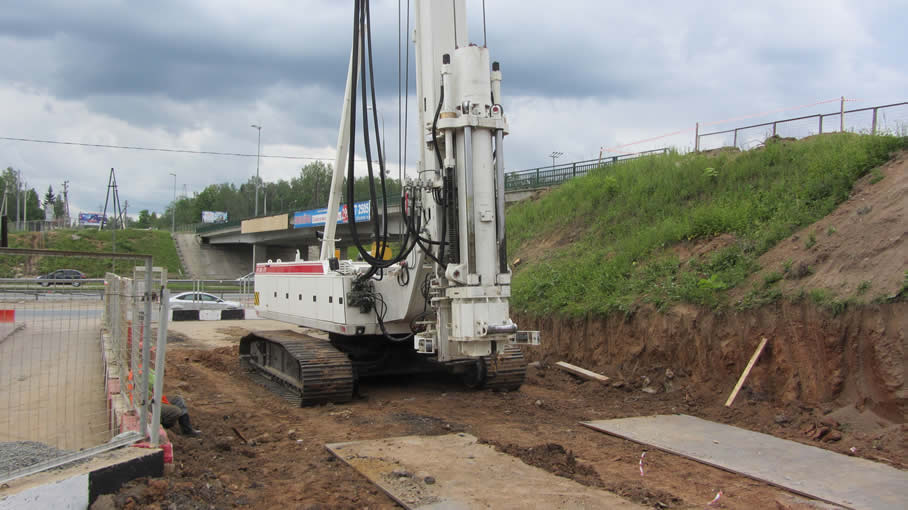

The HR 300-570 is a drilling rig of great dimensions, weighing approximately 90-95 tons. It has been purposely designed without mast articulation in order so the mast is stable and can withstand the high torque of the MCS system (Torque multiplier system exclusively available  from MAIT).  According to your requirements, this rig can be fitted with either a rotary with 233 kNm nominal torque or 270 kNm nominal torque. The HR 300-570 rig succeeds in inserting and extracting casings with a daily  30 % productive increment thanks to the torque multiplier. The MCS system has 57.000 kgm exercised torque from the rotary directly to the casing .
This drilling rig is available in two versions; the difference of each version is indicated by the pull-down system that moves the rotary:
CP version: standard version with pull-down cylinder.
THD version: with crowd winch.
This rig is ideal for every type of drilling in which the operation of casing tubes is very frequent, or a daily constant;
- Drilling very deep and large diameters for Bored Piles, Casing Oscillators, and  Continuous Flight Auger;
- Drilling in rocky terrains or hard soil;
- Drilling “Omega piles” or “Soil Displacement Auger piles” (SDA);
- Diaphragm Walls
- Driven piles with hydraulic hammers.

Technical data

winches
1st winch nominal publlback 200 KN 45,000 lbs
2nd winch nominal pulldown 120 - 180 KN 27,000 - 40,500 lbs
engine
brand CATERPILLAR
model C15
power 403 KW @ 2.100 rpm 540 HP @ 2,100 rpm
hydraulic system
hydraulic oil tank 800 lit 211 gal
fuel tank 580 lit 153 gal
crawler
length 5.900 mm 19.3 ft
width 3.000 - 4.500 mm 9.5 - 15 ft
shoes 900 mm 3 ft
weight
approx. weight 105 ton 231,420 lbs

Working characteristics

Works with Hydraulic Hammer
Hydraulic hammer types with ram up to 14 ton
Max hammer weight 22.500 kg 49,590 lbs
Max pile length 24 m 78.7 ft
Max pile weight 8.000 kg 17,632 lbs
