MICROPILES » GEA 400

Main specs overview

  • Model name
  • GEA 400
  • Category
  • MICROPILES
  • Max torque
    (KNm)
  • 13
  • Rotary rotation speed
    (rpm)
  • 0 - 800
  • Pullback / Pulldown
    (KN)
  • 6 / 6
  • Weight
    (ton)
  • 12,5

More details

Description

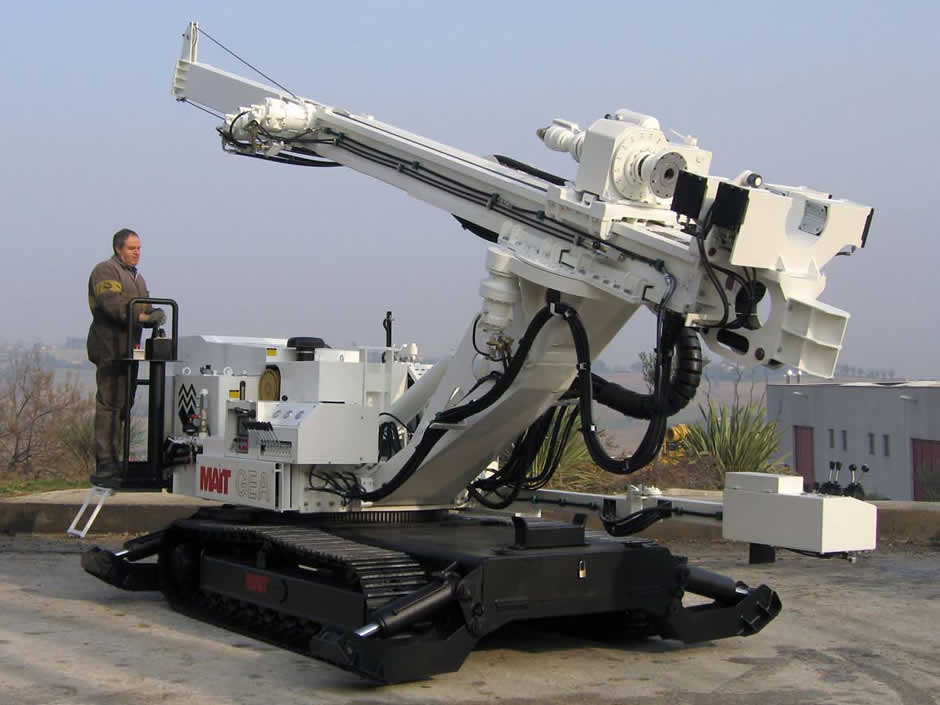

The GEA 400 is exceptionally versatile and adaptable to all types of small diameter drilling works. The mast, which revolves on a thrust bearing, can be positioned hydraulically at any angle between the horizontal and the vertical, thus permitting holes to be drilled with incomparable stability at all inclinations.
Optional kits that are easily mounted, are available for the provision of jet-grouting systems, hydraulic hammer and double rotary head.
The GEA 400 drilling rig can optionally be mounted on a frame for application to truck, trailer, etc..

Technical data

engine
brand CATERPILLAR
model C6.6
Rotary
max nominal torque 13 KNm 9,580 lbsft
speed 0 - 800 rpm
nominal pullback 60 KN 13,480 lbs
nominal pulldown 60 KN 13,224 lbs
stroke

3.400 mm

11.2 ft

2nd winch
nominal pullback Max 25 KN 5,620 lbs
Mast
Sliding540 mm1.77 ft
crawler
length 2.800 mm 9.2 ft
width 2.260 mm 7.4 ft
shoes 400 mm 1.3 ft
various
hydraulic oil tank 320 lit 84.5 gal
fuel tank 320 lit 84.5 gal
stabilyzers 4
clamp 0 - 270 mm 0 - 10.6 in
accessories Optional
Pompa fango (flow-rate) 0 - 180 l/min 0 - 47.5 gal/min
Pompa fango (pressione Max) 60 bar 870 psi
foam pump (flow-rate) 0 - 40 l/min 0 - 10.5 gal/min
foam pump (pressione Max)  70 bar  1,015 psi
line lubricator
Madrino idraulico 60 - 100mm 2.4 - 4in
Rotary doppia testa 275 kgm
hydraulic spindle 50 - 90 mm 2 - 3.5 in
Doppia testa di rotazione 275 kgm (0 - 130 rpm) 1,989 lbsft (0 - 130 rpm)
jet-grouting kit

Working characteristics
