DIAPHGRAMS » HR 260 DW

Main specs overview

  • Model name
  • HR 260 DW
  • Category
  • DIAPHGRAMS
  • Diaphragm walls kit available
  • TR - BA
  • Max dimension
    (mm)
  • 1.200 x 2.500
  • Max depth
    (m)
  • 30 - 50
  • Weight
    (ton)
  • 75

More details

Description

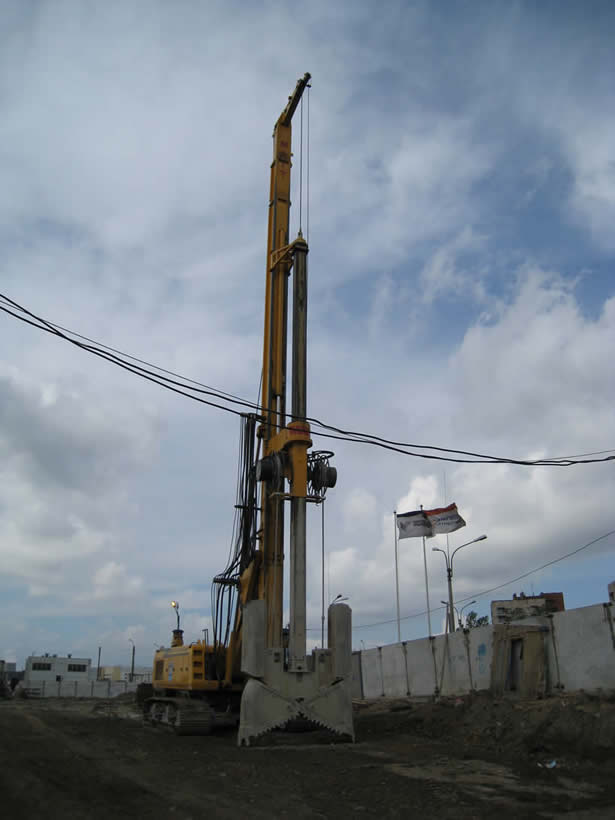

The HR 260 is a self erecting, 75 ton drilling rig particularly suitable for drilling great diameters using the kelly bar system and with casing tubes directly with the rotary.  The HR 260 is able to perform the following applications
- Drilling large diameters and great depths with augers or buckets
- Execution of direct rotary drilling with casings and casing oscillator
- Continuous Flight Auger (CFA) & Diaphragm Walls
- Execution of Double Head drilling
The HR 260 is available in the following two versions
HR 260 CP –  the standard version, is equipped with a Pull-down Cylinder which exerts it’s force on the rotary, and is principally utilized for drilling large diameter bore holes.  The rotary is able to work with a stroke of 6.100 mm (20 ft) approx. The HR 260 CP uses a parallelogram system of articulation guaranteeing a notable range or motion 1.000 mm (3.3 ft).
HR 260 THD – available upon request, The THD system moves the rotary by utilizing a crowd winch, allowing the rotary to be used along a larger stroke of the mast, 10 m (33 ft) approx.  The THD version is particularly useful for driving and extracting casing tubes directly by the rotary, and without a doubt increasing your daily productivity.

Technical data

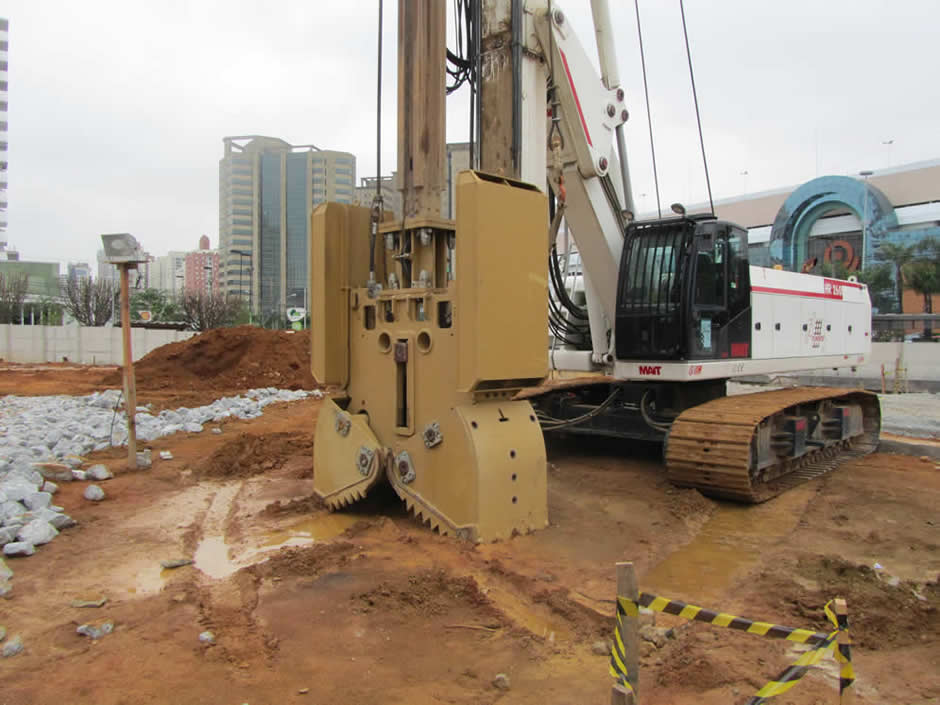

grab kit
type guided with telescopic square section rod, rotation ± 180°
winches
1st winch nominal pullback 240 KN 54,000 lbs
2nd winch nominal pullback 80 - 120* - 180* KN 18,000 - 27,000* - 40,500* lbs
engine
brand CATERPILLAR
model C13
power 328 KW @ 2.100 rpm 440 HP @ 2,100 rpm
hydraulic system
hydraulic oil tank 800 lit 211 gal
fuel tank 430 lit 114 gal
crawler
length 5.450 mm 18 ft
width 3.000 - 4.300 mm 9.5 - 14 ft
shoes 900 mm 3 ft
weight
approx. weight 75 ton 165,000 lbs

Working characteristics

Diaphragm Walling
Max Size 1.200 x 2.500 mm 4 x 8 ft
Max depths 30 - 50 m 98.5 - 164 ft
