BORED PILES » HR 130

Main specs overview

  • Model name
  • HR 130
  • Category
  • BORED PILES
  • Max torque
    (KNm)
  • 170
  • Max Diameter
    (mm)
  • 1.300
  • Max Depth
    (m)
  • 50
  • Weight
    (ton)
  • 33

More details

Description

The HR 130 is a powerful compact rig that does not require disassembly for transporting from job to job. It is able to drill large diameters with augers and buckets, and can also be equipped with diverse kits which allow to drill with Continuous Flight Auger, Diaphragm walls, Down the Hole Hammers, and even Casing Oscillators.  The HR 130’s particularly modular conception allow easily and rapidly convertible depending on the drilling requirements, allowing the operator to carry out a wide variety of jobs which would otherwise require the use of different and expensive equipment. The HR 130 comes equipped with electronic depth counter, automatic levelling system, and air conditioning & heating system in order to better accomodate the operator.

Technical data

Rotary
Nominal Torque 170 KNm 125,500 lbsft
Nominal Pull-Back/Pull-Down 170 - 135 KN 38,250 - 30,375 lbs
Unloading speed 150 rpm
Stroke 4.300 mm 14 ft
Winches
Main Winch Nominal Pullback 140 KN 31,500 lbs
Secondary Winch Nominal Pullback 80 KN 18,000 lbs
Engine
brand CATERPILLAR
Model C7
Power 186 KW @ 2.100 rpm 250 HP @ 2,100 rpm
Hydraulic system
Hydraulic Oil Tank 470 liters 124 gal
Fuel tank 200 lit 53 gal
Crawler
Length 4.500 mm 15 ft
Width 2.540 - 3.640 mm 8 - 12 ft
Shoes 600 mm 2 ft
Weight
Approx weight 33 ton 72,750 lbs

Working characteristics

Works with Augers & Buckets
Max Diameter 1.300 - 1.600* mm 4.3 - 5.2* ft
Max Diameter (without lower mast extension) 1.800 mm 6 ft
Max Diameter with casings 1.300 mm 4.3 ft
Depths 30 - 40 - 50 m 98.5 - 131 - 164 ft
Works with Casing Oscillator
Max Diameter 600 - 1.300 mm 2 - 4.3 ft
* on request

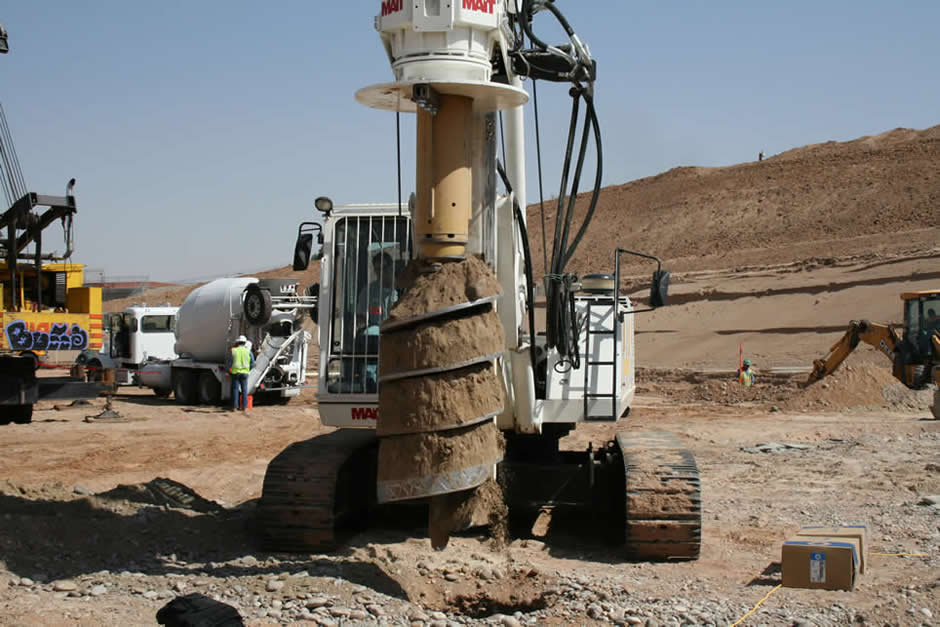

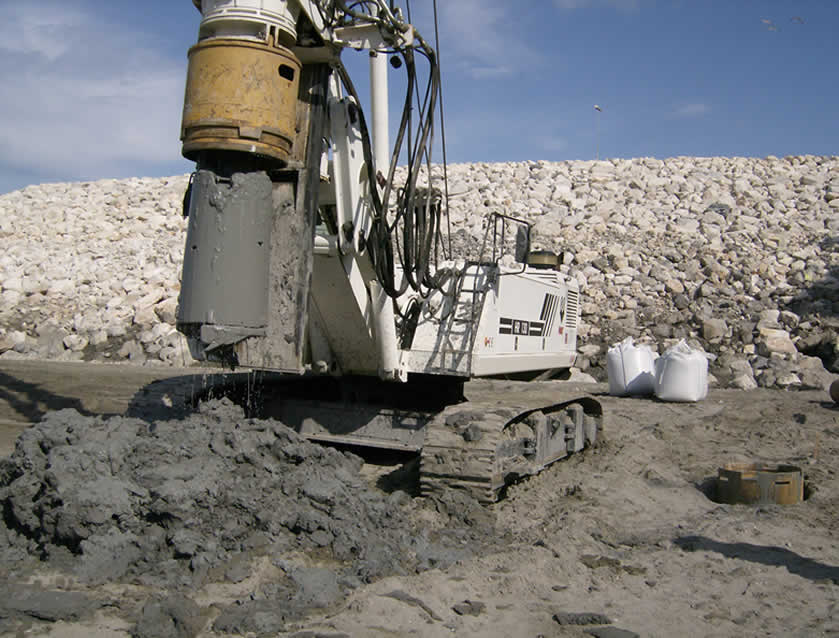

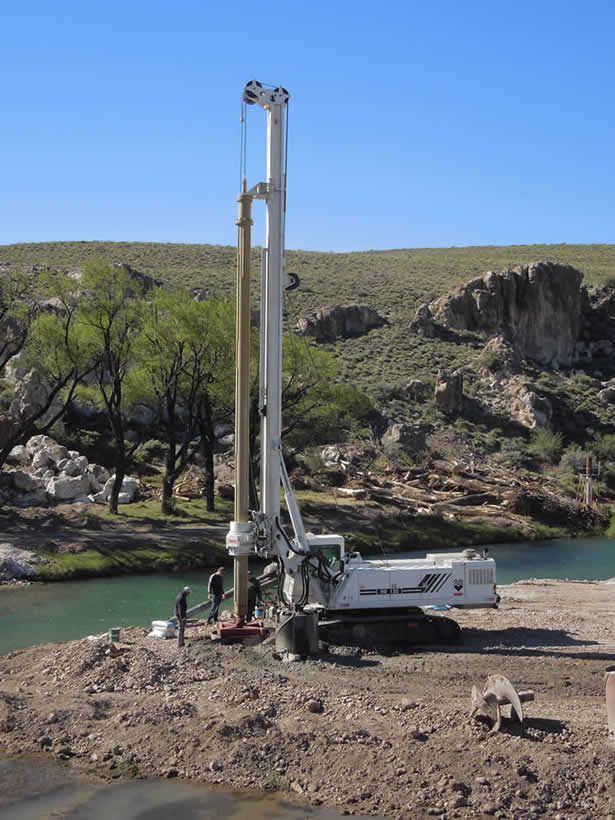

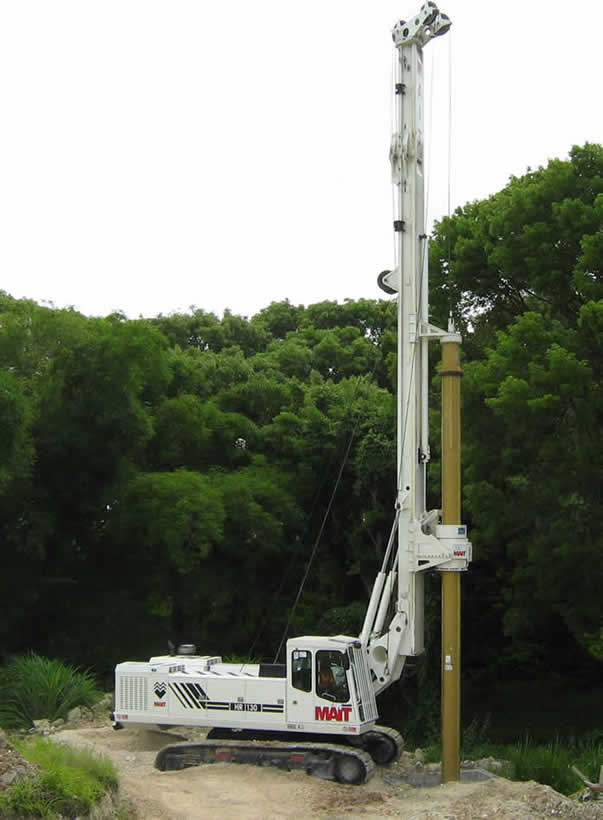

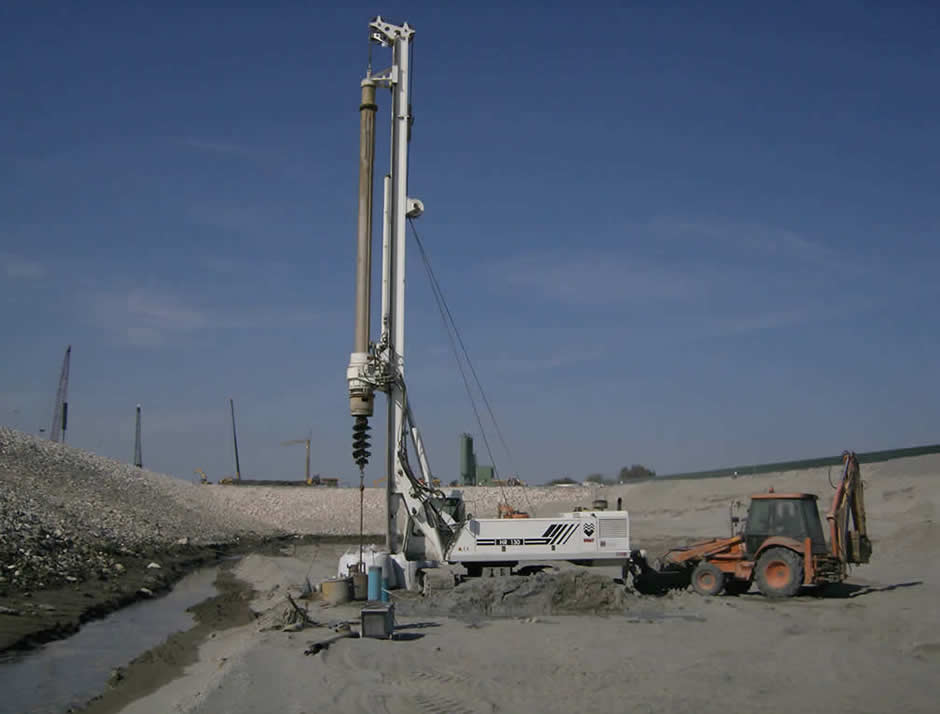

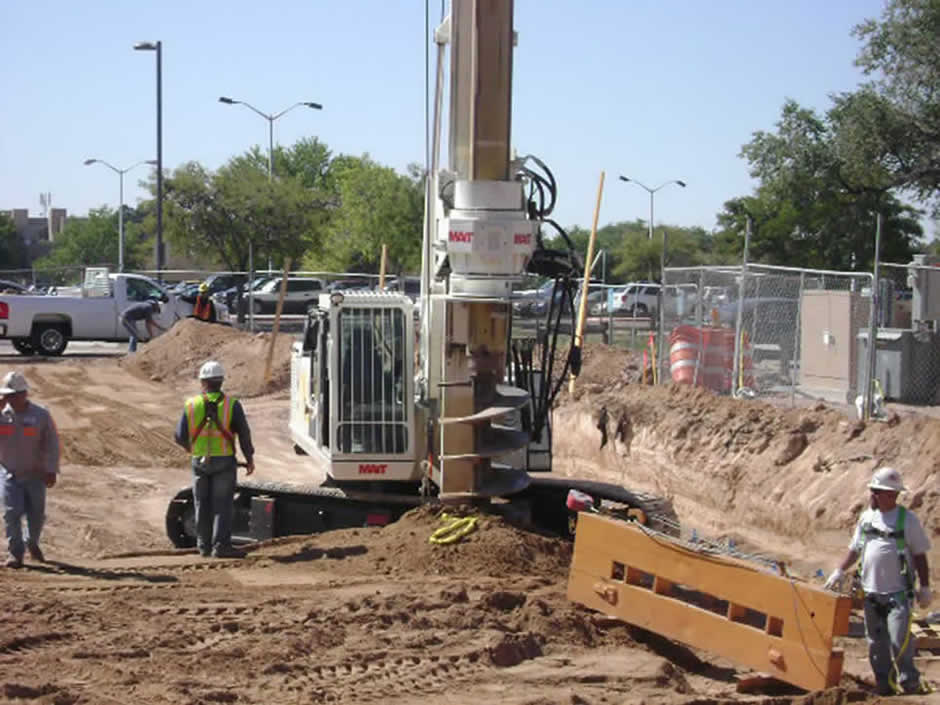

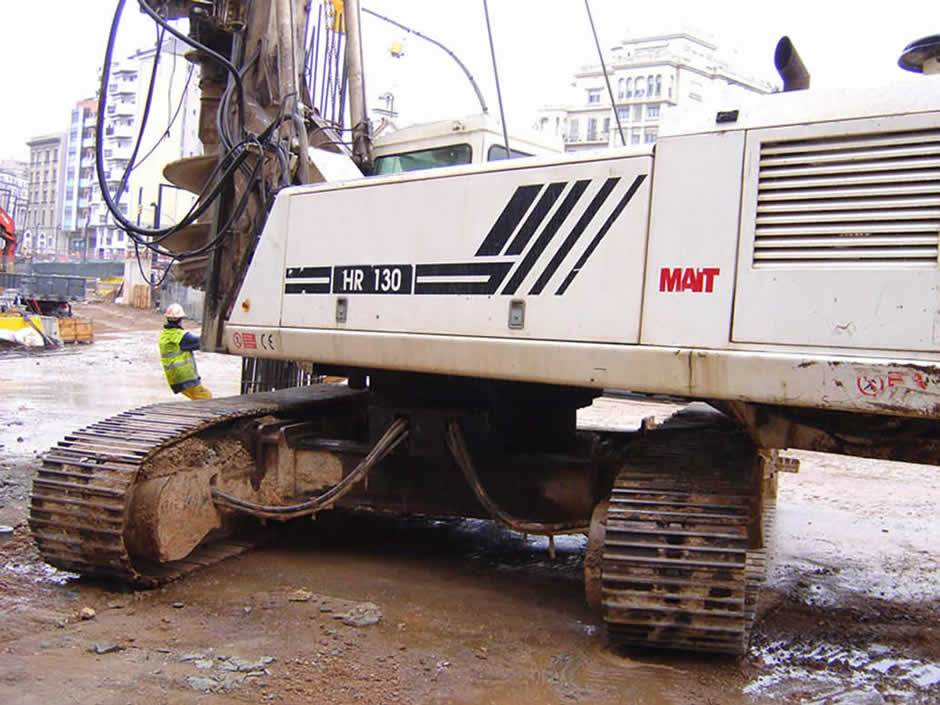

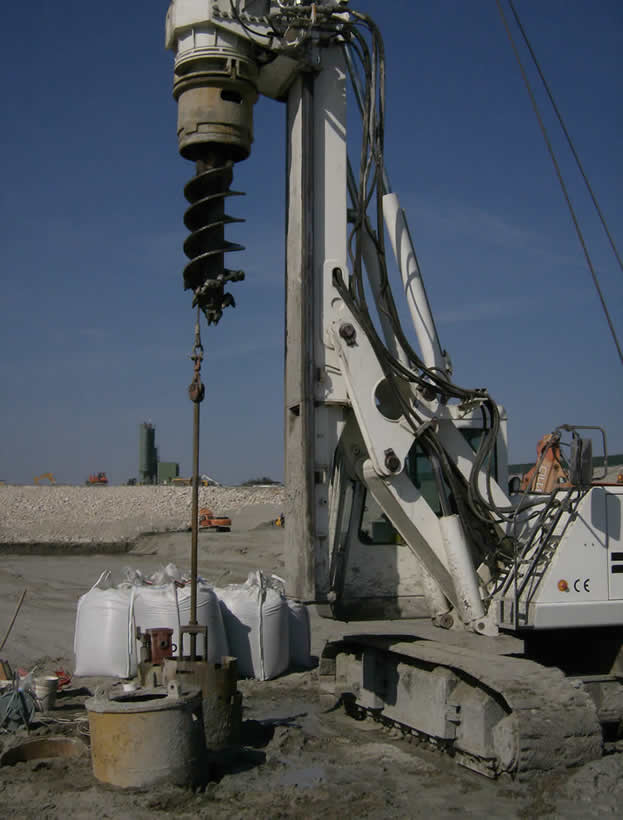

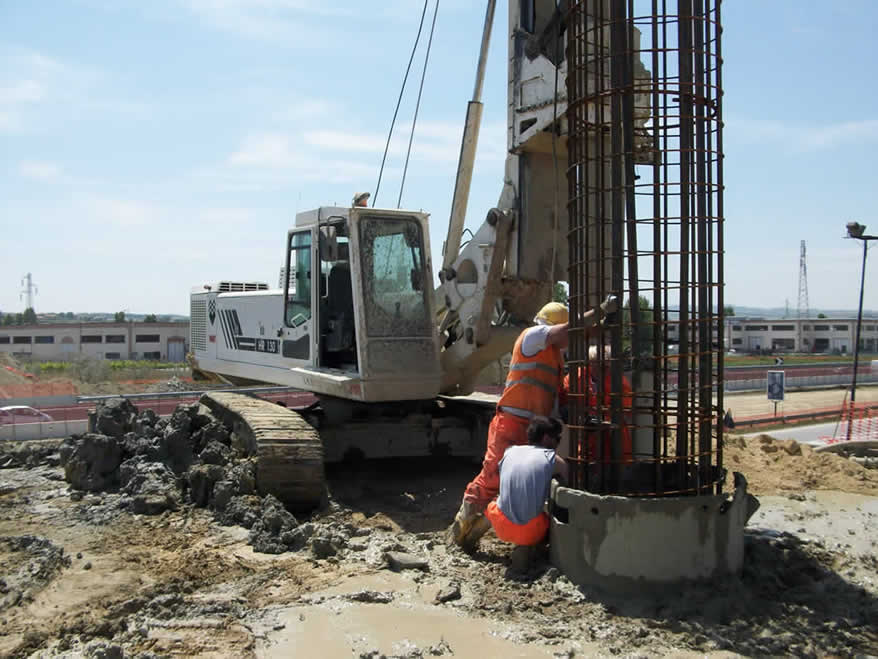

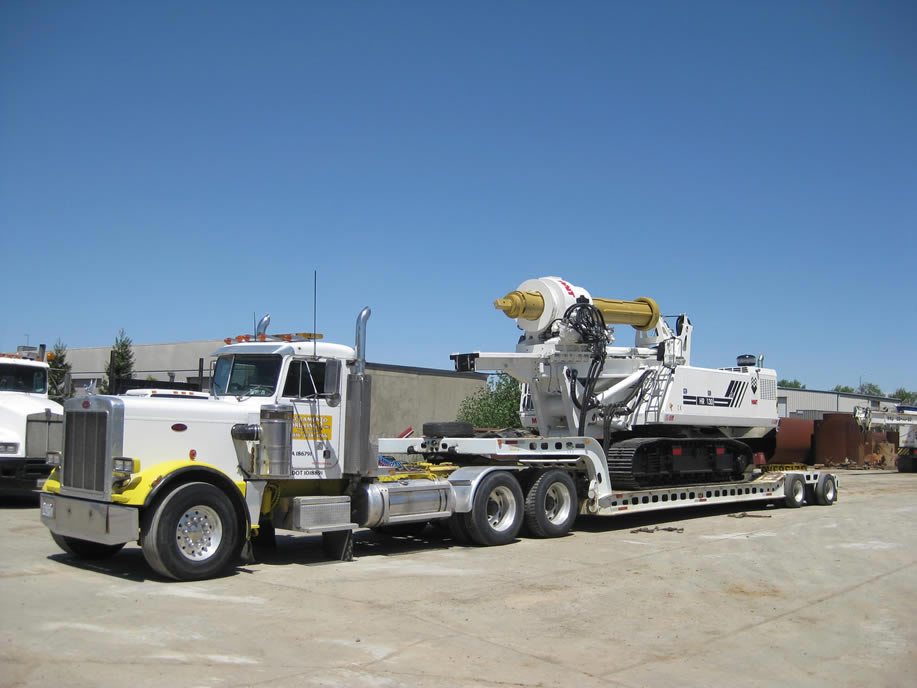

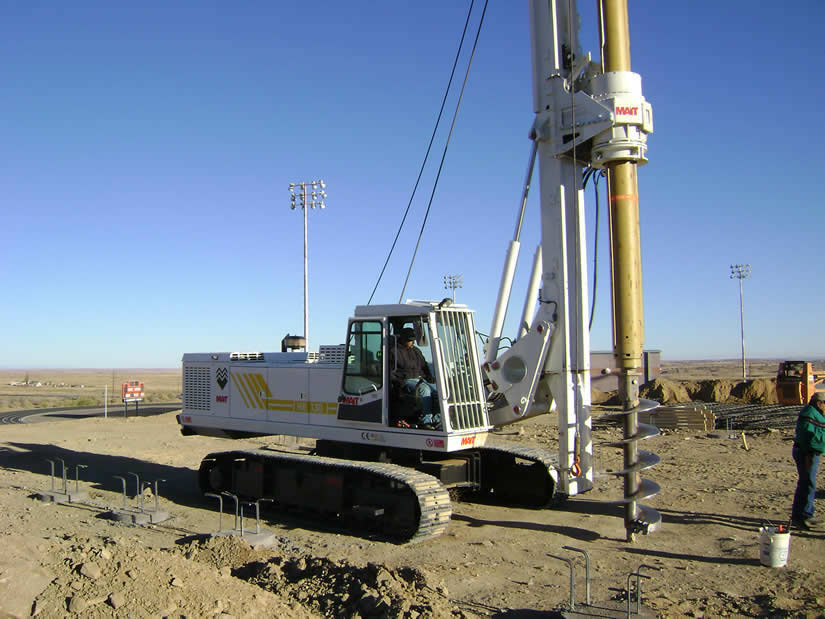

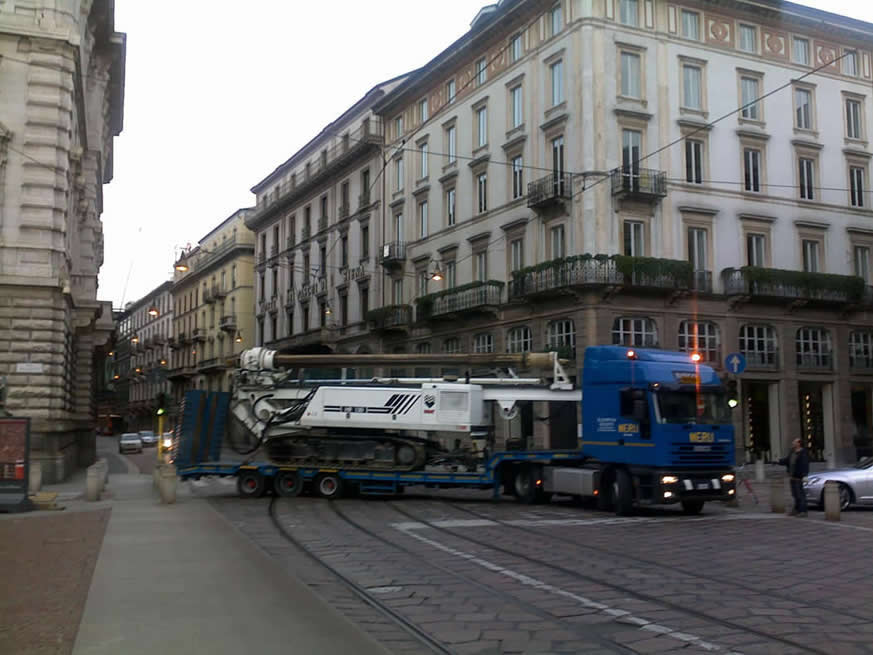

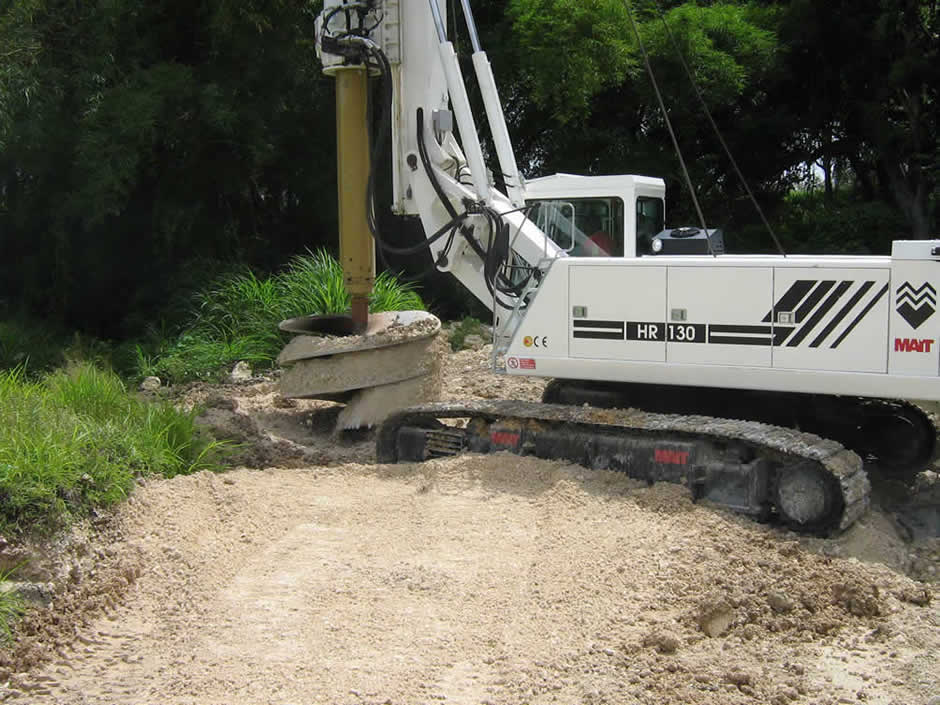

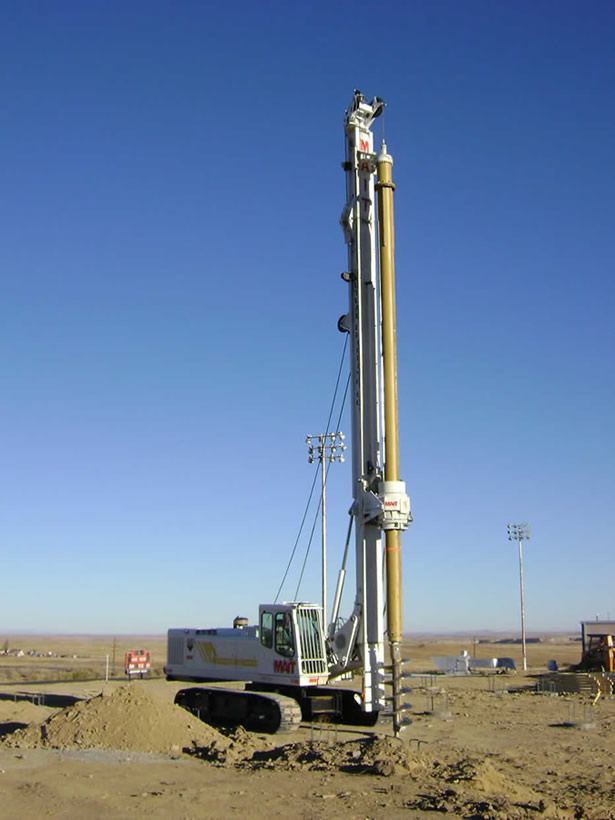

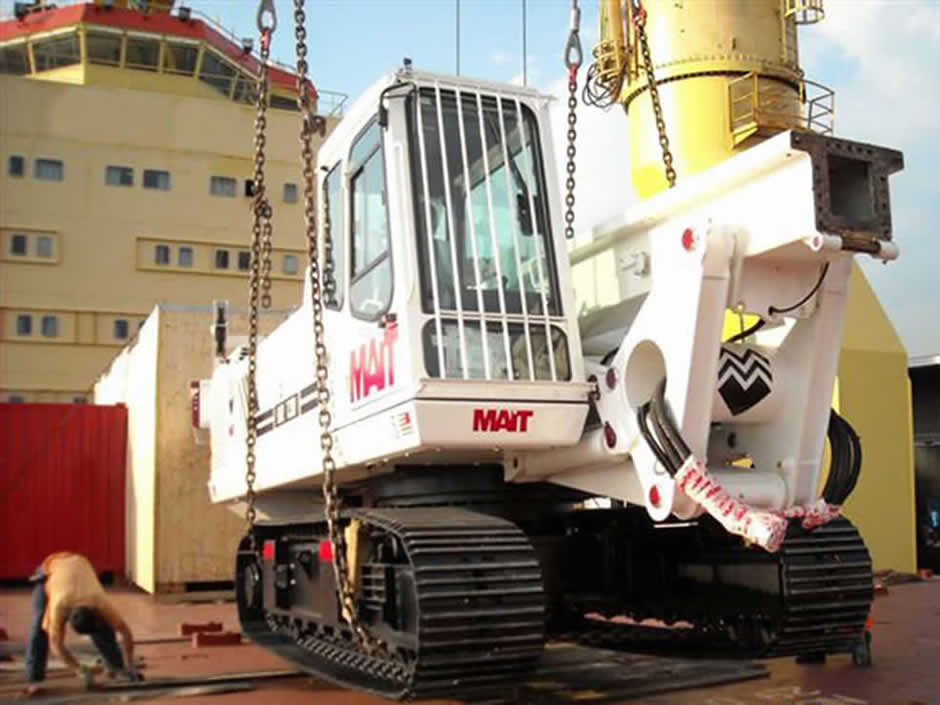

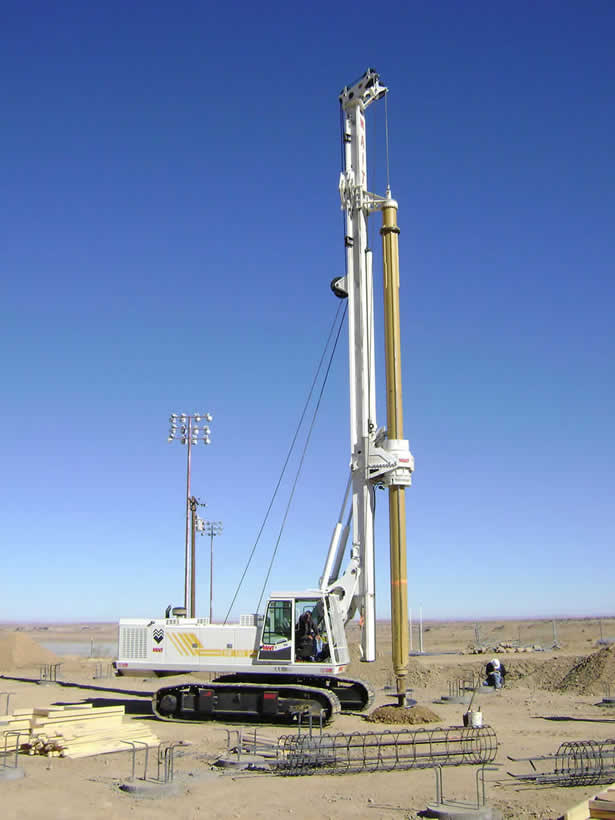

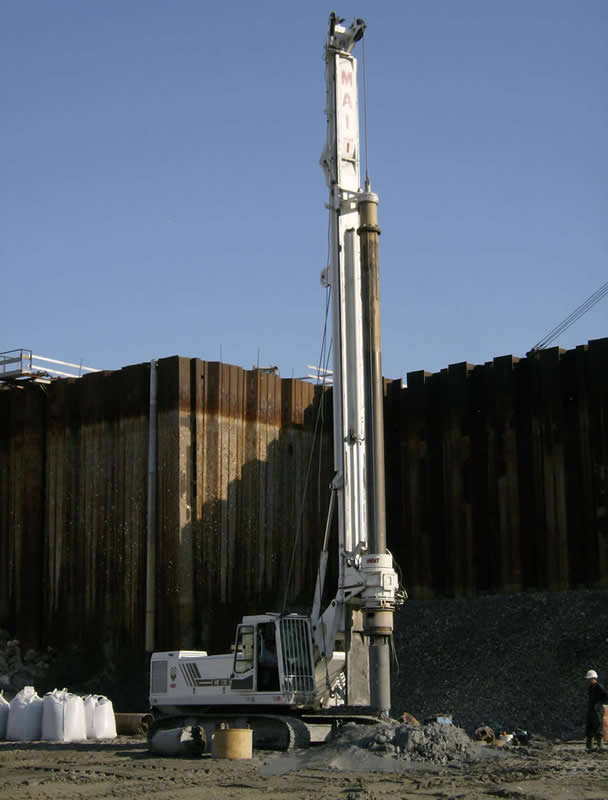

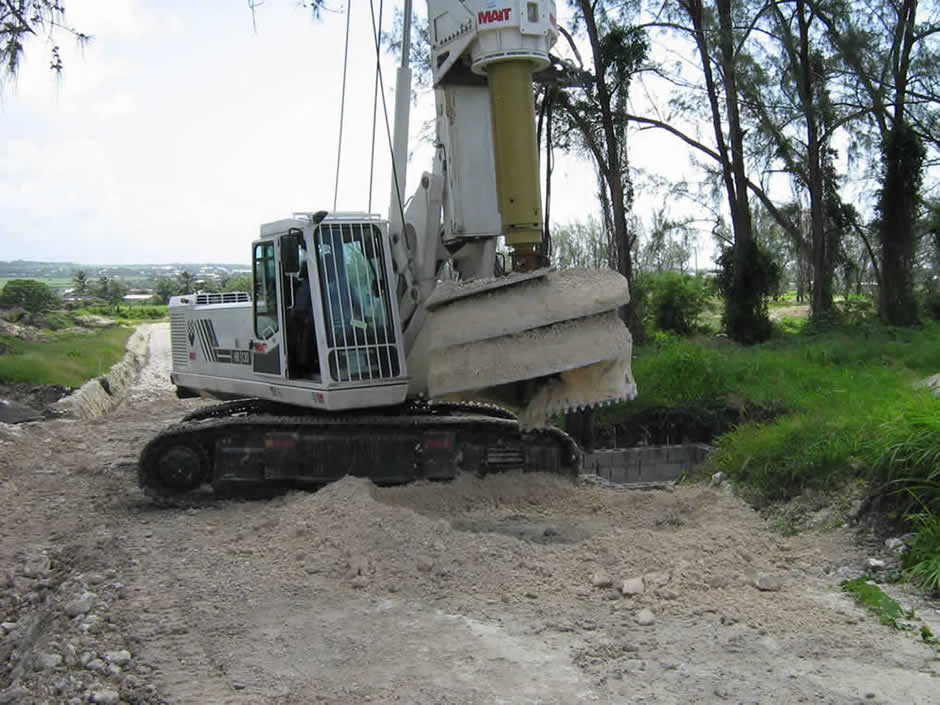

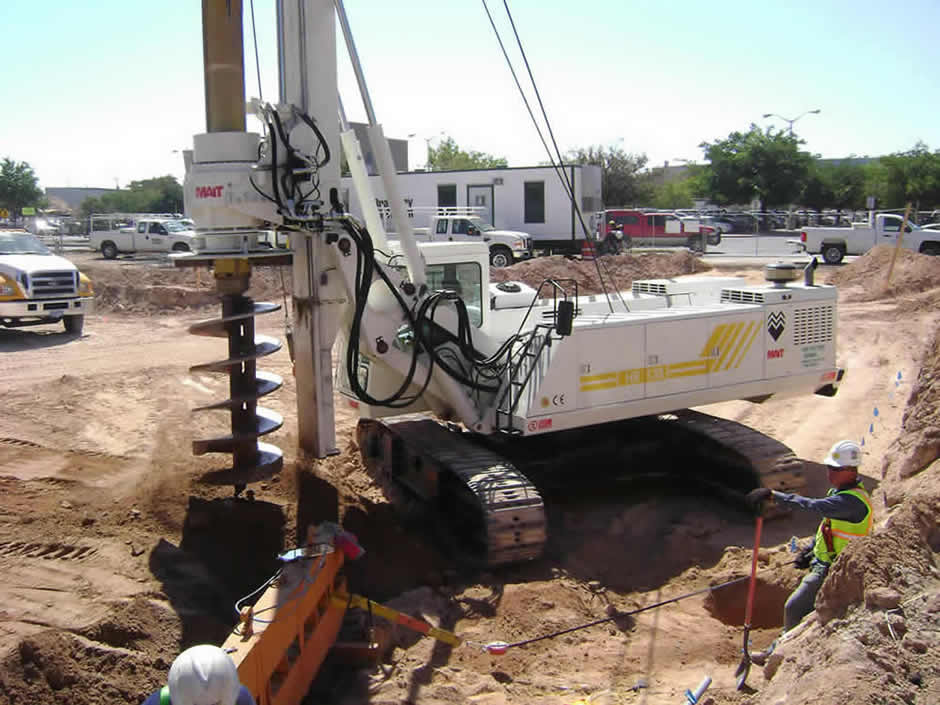

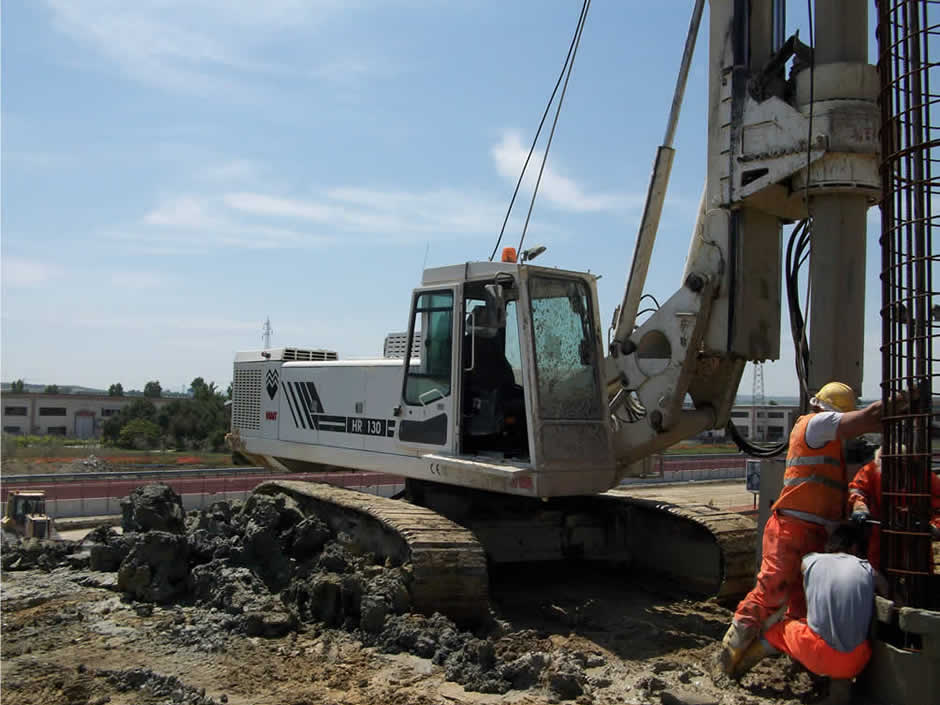

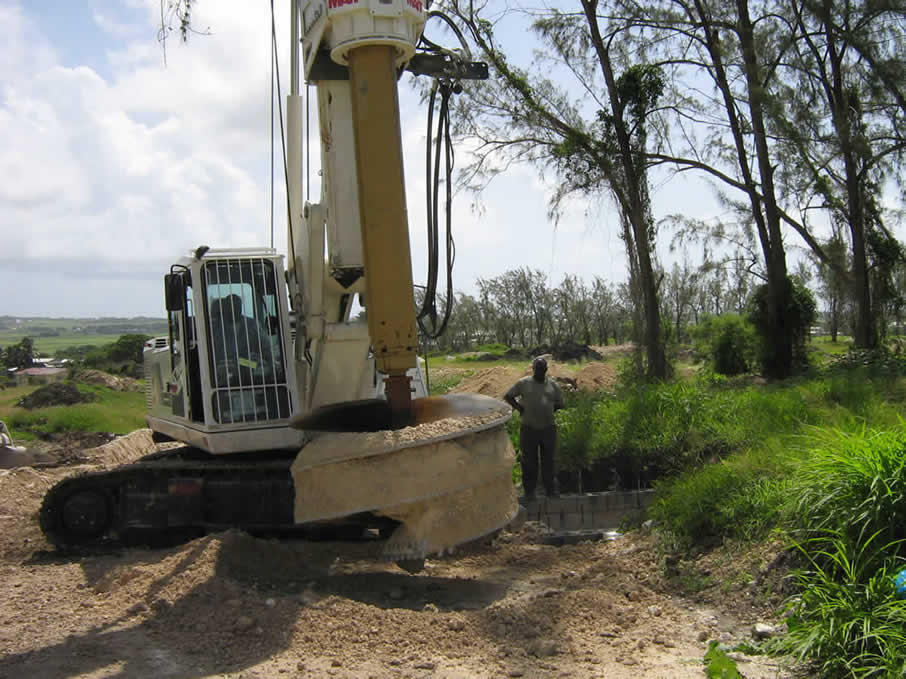

Media Gallery
