TUNNELS » GEA 500 J

Main specs overview

  • Model name
  • GEA 500 J
  • Category
  • TUNNELS
  • Max torque
    (KNm)
  • 13
  • Max – min working angle
  • 4.000 - 2.200
  • Max hole length
    (mm)
  • 5.000
  • Weight
    (ton)
  • 19,5

More details

Description

The GEA 500J is a modified version of MAIT GEA 500 hydraulic crawler drilling rig, already well appreciated for its versatility.
The GEA 500J is dedicated to full length longitudinal drilling in single operations as required in jet–grouting and fore-poling applications.

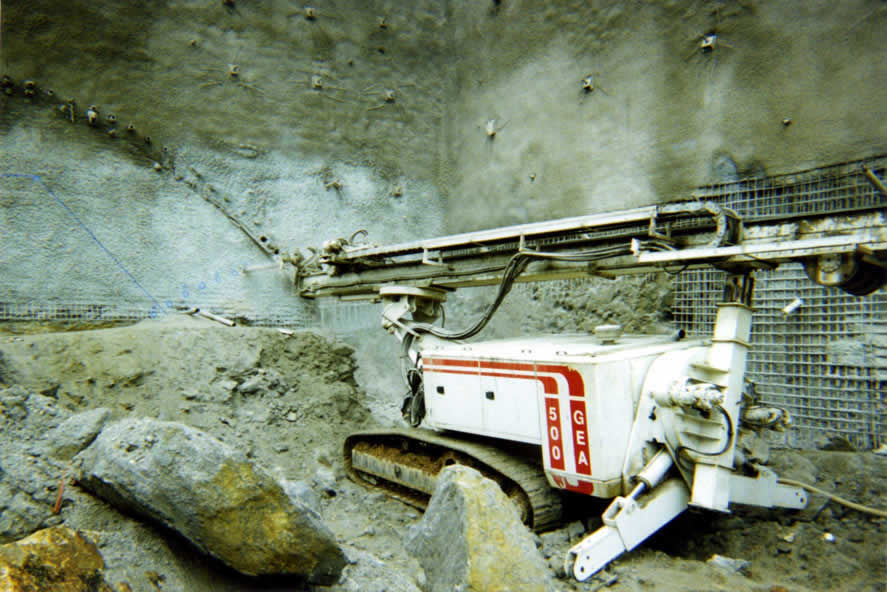

A very long horizontal mast is rotated by means of an additional rear slewing ring and telescopic vertical arm, in order to perform pre-consolidation treatments in tunnel works.

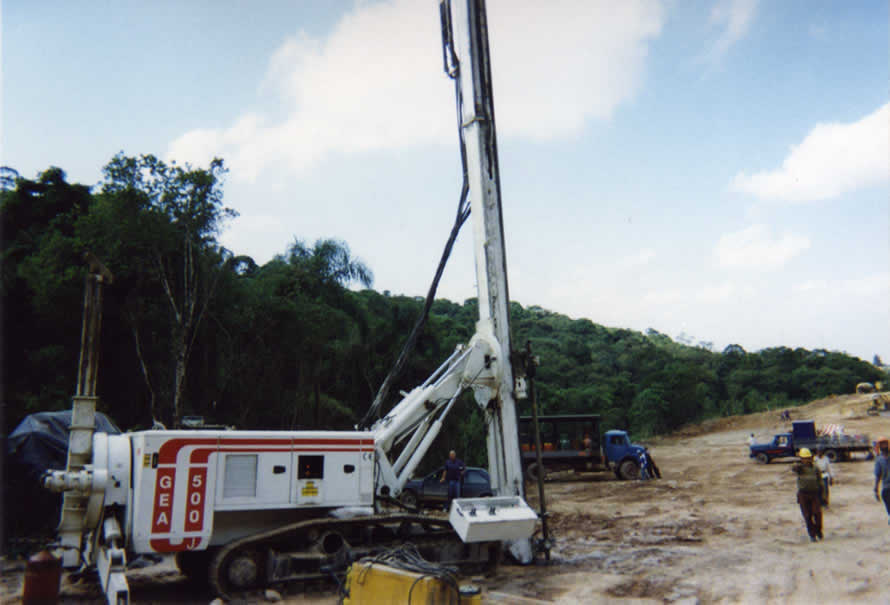

The rig can also be utilized with the very same mast for vertical drilling in particular for jet-grouting works.
Various types of hydraulic rotary heads are also available, with different working characteristics to satisfy your drilling requirements.
Upon request, the rig can be equipped with an electronic control and parameter recording system for jet-grouting purposes.

Technical data

engine
brand CATERPILLAR
model 3116TA
Rotary
max nominal torque 13 KNm 9,581 lbsft
rotation speed 0 - 600 rpm
rotary horizontal stroke 4.200 mm 13.8 ft
pullback / pulldown 80 KNm 58,960 lbsft
mast
total length 14.500 mm 47.5 ft
horizontal sliding 1.000 mm 39.37 in
mast rotation ± 100°
power 170 KW @ 2.200 rpm 230 HP @ 2,200 rpm
various
hydraulic oil tank 500 lit 132 gal
fuel tank 500 lit 132 gal
hydraulic stabilizers 2
crawler
length 4.060 mm 13.3 ft
width 2.450 mm 8 ft
shoes 400 mm 15.7 in
weight
approx. weight 19.5 ton 42,978 lbs

Working characteristics

Performances
Max working radius (with 10° inclination) 4.000 mm 13.1 ft
Min working radius (with 0° inclination) 2.200 mm 7.2 ft
Horizontal hole max height 5.000 mm 16.4 ft
Horizontal hole min height 3.600 mm 11.8 ft
Treatment inclination 0° -  10°
Max rotation angle ± 100°
Max drilling diameter 90 - 200 mm 3.5 - 7.9 in
