BORED PILES » RAIL DRILL 100

Main specs overview

  • Model name
  • RAIL DRILL 100
  • Category
  • BORED PILES
  • Max torque
    (KNm)
  • 100
  • Max Diameter
    (mm)
  • 1.300
  • Max Depth
    (m)
  • 7
  • Weight
    (ton)
  • 34,1

More details

Description

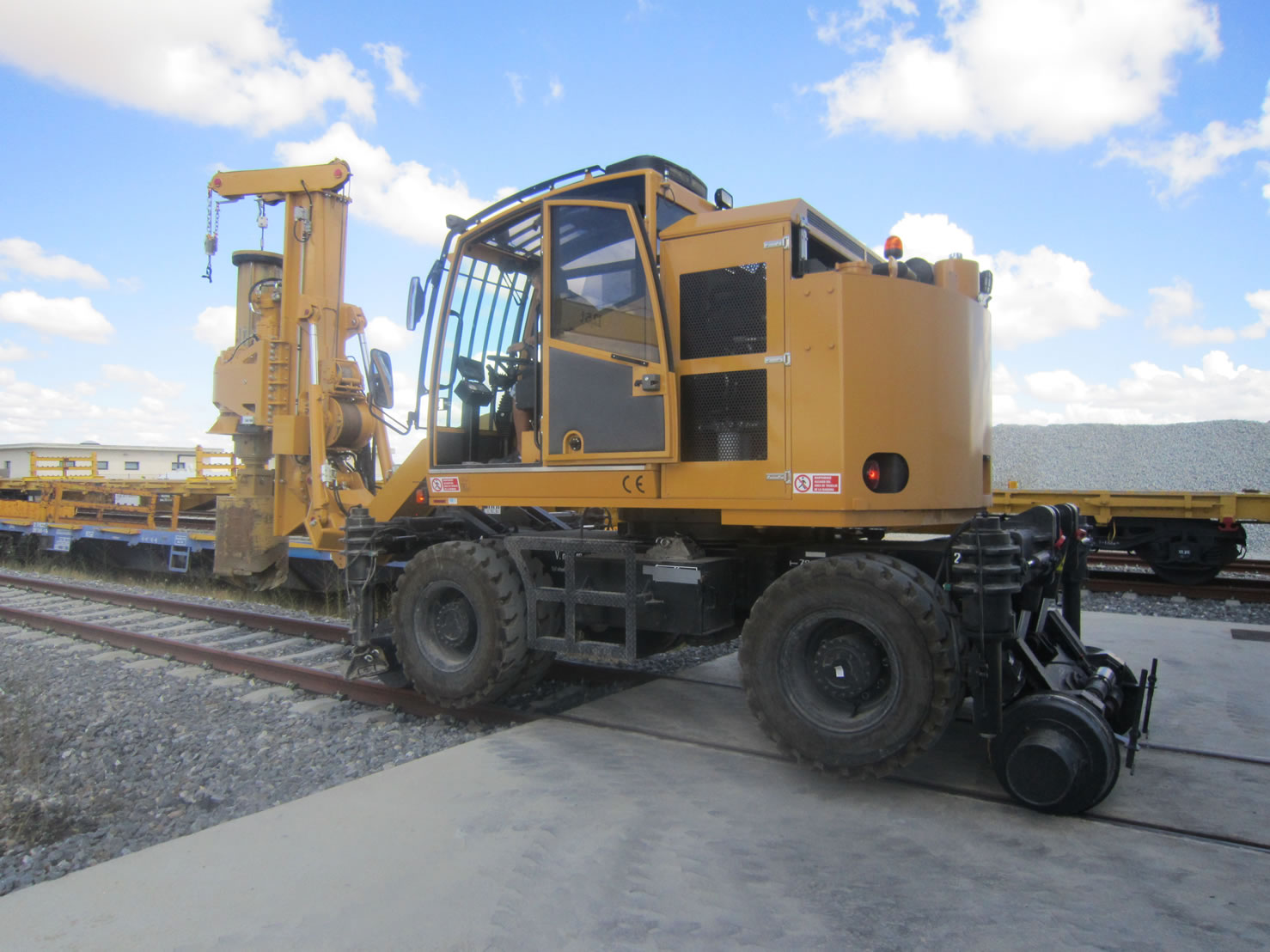

The RD 100 further completes the range of products offered by MAIT with a continuous expansion of over 60 years.
Versatility, compactness and high technology characterize the Rail Drill 100 drilling machine that is able to work either on highways or railways, respecting the latest european standards.
Unique features such as the mast reach and the mast positioning - inclination system allows the unloading of soil directly onto a rail cart, without having lay down tarps along railway lines.
The RD 100 is autonomous for transport and able to be adopted to different specifications. It is ideal for both road and rail works.

Technical data

Rotary
Nominal Torque 100 KNm 73,756 lbsft
Nominal Pull-Back/Pull-Down 26 - 55 KN 5,845 - 12,364 lbf
Unloading Speed 150 rpm
Stroke 700 mm 27.5 in
Winches
Main Winch Nominal Pullback 50 KN 5,845 lbf
Secondary Winch Nominal Pullback 14 KN 3,147 lbf
Engine
Brand DEUTZ
Power 129 KW @ 2.300 rpm 173 HP @ 2,100 rpm
Hydraulic System
Hydraulic Oil Tank 400 liters 105.6 gal
fuel tank 200 lit 52.8 gal
Tires
Max traction force on road 162 KN 36,419 lbf
Max speed on road 24 km/h 15 mph
Railway cart
Max traction force on railway tracks 140 KN 31,473 lbf
Max speed on railway tracks 19 km/h 11.8 mph
Weigth
Aprrox weight 34,1 ton 75,177.5 lbs

Working characteristics

Max diameter 1.300 mm 51.2 ft
Depths 7m 23 ft
Min-Max working height on tires 4.160 - 4.635 mm 163.7 - 182.4 in
Min-Max working height on railway cart 4.290 - 4.420 mm 169 - 174 in
