BORED PILES » HR 165

Main specs overview

  • Model name
  • HR 165
  • Category
  • BORED PILES
  • Max torque
    (KNm)
  • 170
  • Max Diameter
    (mm)
  • 1.300
  • Max Depth
    (m)
  • 48
  • Weight
    (ton)
  • 33

More details

Description

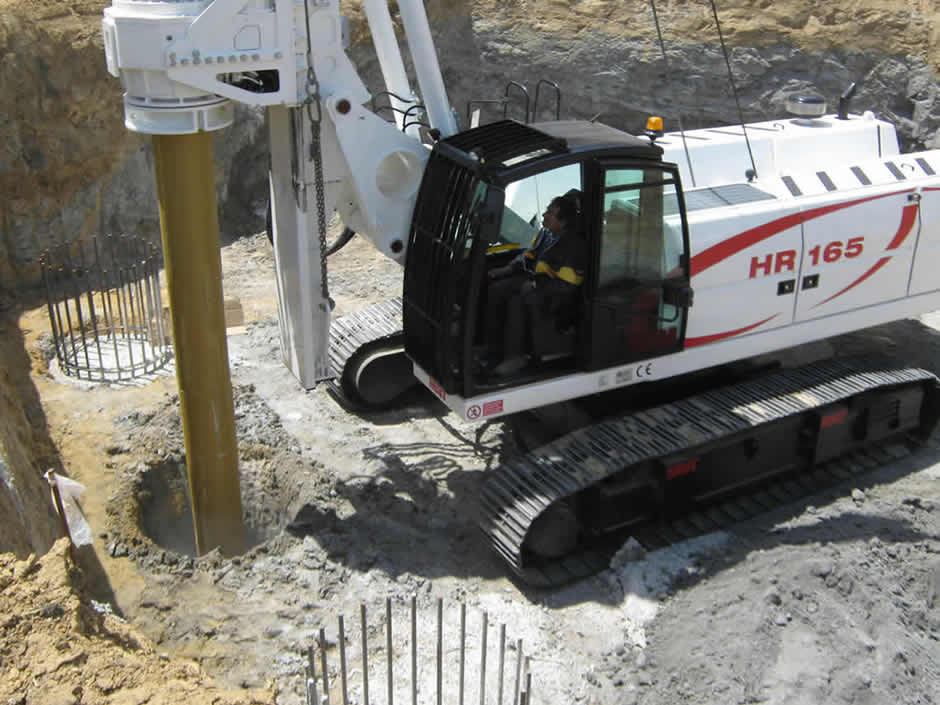

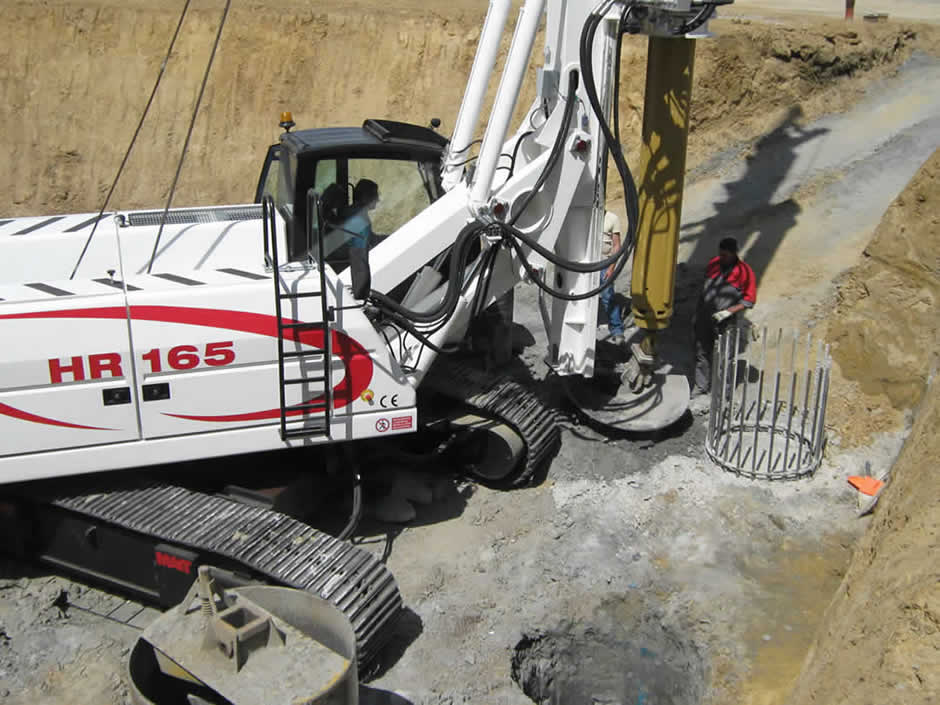

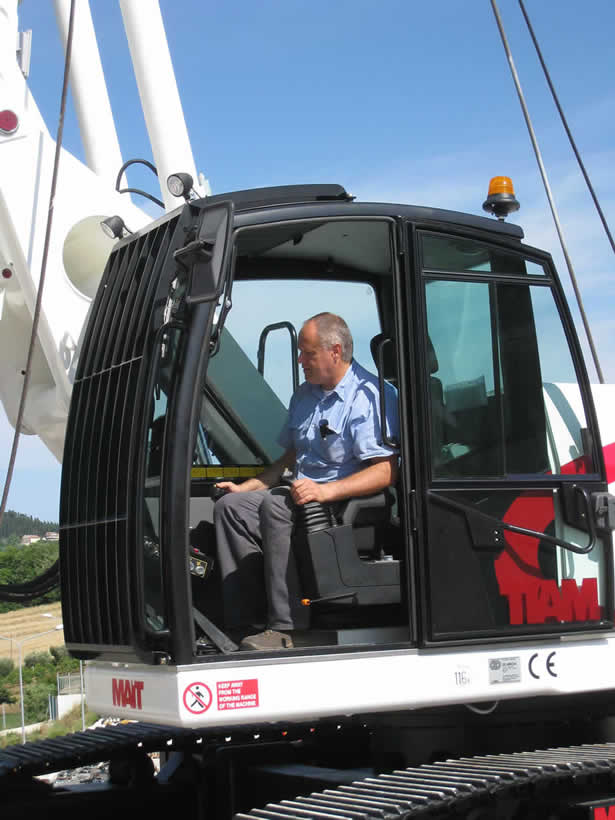

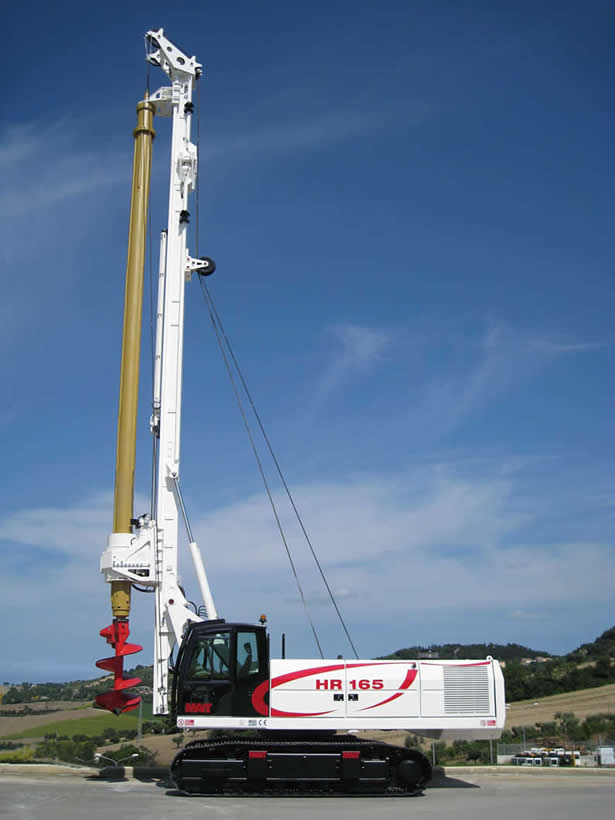

The HR 165 is a multipurpose compact drilling rig, projected to realize several drilling techniques and suitable for medium to large diameter drilled shafts in any kind of soil by using a rotary system with Kelly bar, augers and bucket. This model of hydraulic rig combine the high quality and reliability from MAIT experience with a design with renewed line. The cabin has been designed to offer maximum efficiency and comfort for the operator and equipped with air conditioning and heating system. The HR 165 comes with graphic interface on a LCD display that permits to control functional parameter in a easy and direct way and to manage some electronically controlled operations. The HR 165 is mounted on widening crawler track and does not require disassembling for transporting making faster the displacement from job to job.

Technical data

Rotary
Nominal torque 170 KNm 125,500 lbsft
Nominal Pull-Back/Pull-Down 170 - 135 KN 38,250 - 30,375 lbs
Unloading speed 150 rpm
Stroke 4.300 mm 14 ft
winches
Main Winch Nominal Pullback 140 KN 31,500 lbs
Secondary Winch Nominal Pullback 80 KN 18,000 lbs
Engine
brand CATERPILLAR
Model C7
Power 186 KW @ 2.100 rpm 250 HP @ 2,100 rpm
Hydraulic system
Hdraulic oil tank 500 liters 132 gal
Fuel tank 200 liters 53 gal
Crawler
Length 4.500 mm 15 ft
Width 2.540 - 3.640 mm 8 - 12 ft
Shoes 600 mm 2 ft
Weight
Approx weight 37 ton 81.570 lbs

Working characteristics

Works with Augers & Buckets
Max Diameter 1.600 mm 5.2 ft
Max Diameter (without lower mast extension) 1.800 mm 6 ft
Depths 30 - 40 - 48 m 98.5 - 131 - 157.5 ft
Works with Casing Oscillator
Max Diameter 600 - 1.300 mm 2 - 4.3 ft
