BORED PILES » MC 180

Main specs overview

  • Model name
  • MC 180
  • Category
  • BORED PILES
  • Max torque
    (KNm)
  • 180
  • Max Diameter
    (mm)
  • 1800
  • Max Depth
    (m)
  • 50
  • Weight
    (ton)
  • 50

More details

Description

MAIT, a world-leading manufacturer of hydraulic drill rigs, is pleased to introduce our latest line of drill rigs called MC.
The MC 180 has been designed to guarantee better productivity in drilling of medium and large diameter drilled shafts, with maximum running economy.  MC 180 compact size allow easy transportation and positioning in the jobsite.
The MC 180 utilizes a CAT excavator base mounted on MAIT’s specifically designed expandable crawler base which offers greater stability and enormous
advantages for drilling contractors.
The cabin is spacious, comfortable and equipped with heating and air conditioning, ensuring a better working environment for the operator.

Technical data

Rotary
Nominal Torque Available 180 KNm 132,700 lbsft
Nominal Pull-Back/Pull-Down 200 - 185 KN 45,000 - 41,625 lbs
Unloading Speed 115 rpm
Stroke 5.100 mm 16.7 ft
Winches
Main Winch Nominal Pullback 180 KN 45,000 lbs
Secondary Winch Nominal Pullback 80 KN 18,000 lbs
Engine
Brand CATERPILLAR
Model C7
Power 187 KW @ 1.900 rpm 252 HP @ 1,900 rpm
Hydraulic system
Hydraulic oil tank 260 liters 68.7 gal
Fuel tank 520 liters 137 gal
Crawler
Length 4.900 mm 16 ft
Width 3.000 - 4.300 mm 10 - 14 ft
Shoes 800 mm 2.6 ft
Weigth
Approx Weight 50 ton 110,200 lbs

Working characteristics

Works with Augers & Buckets
Max Diameter 1.800 mm 6 ft
Depths 40 - 50 m 131 - 165 ft
Works with Casing Oscillator
Max Diameter 1.400 mm 4.6 ft

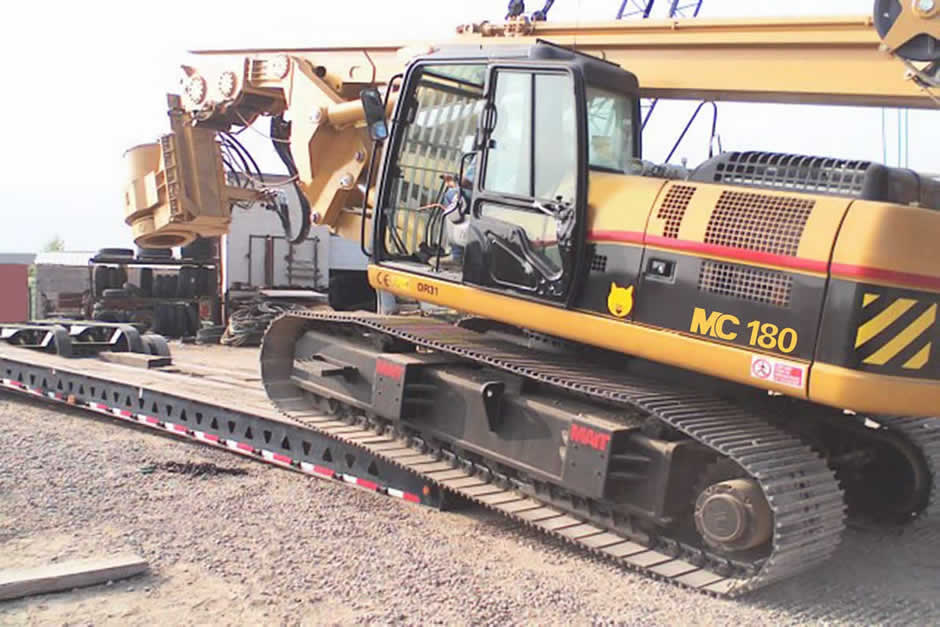

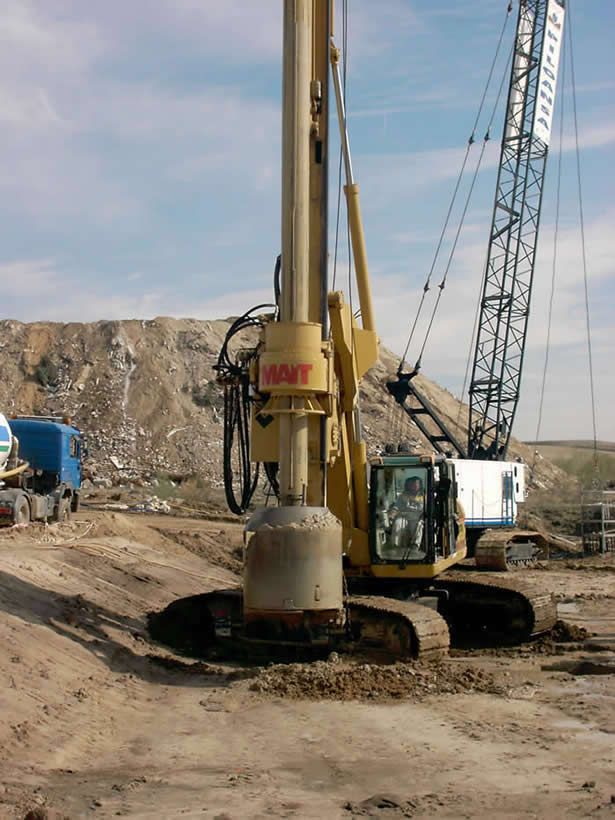

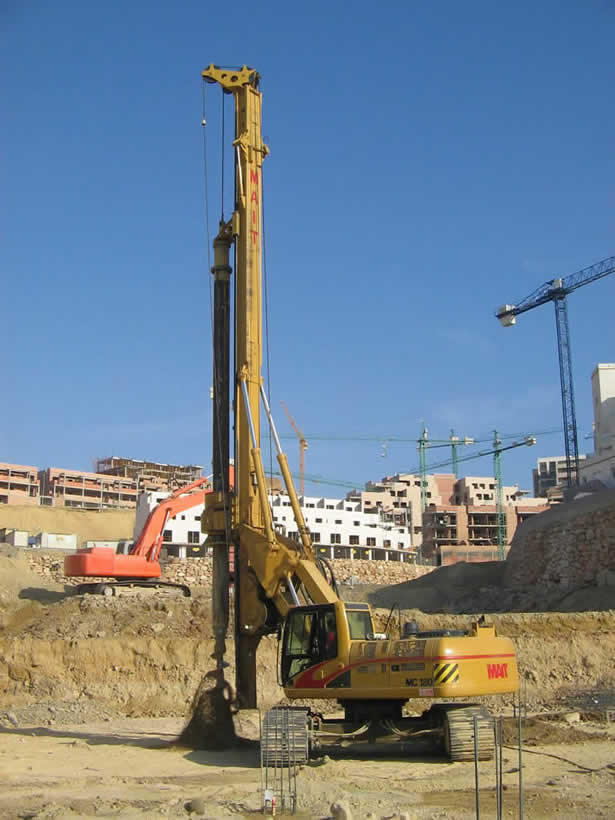

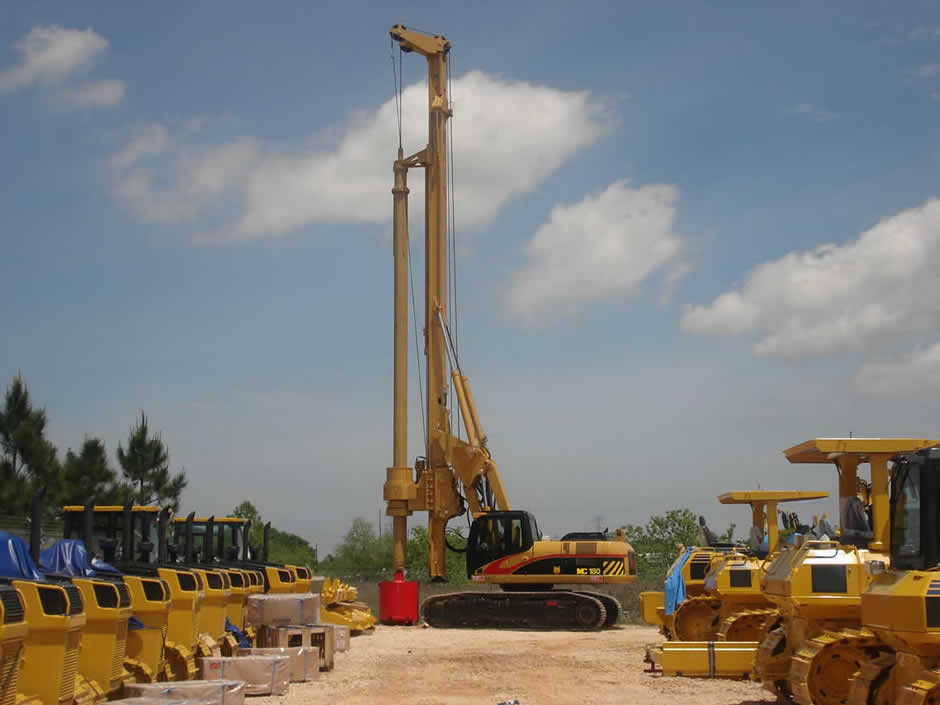

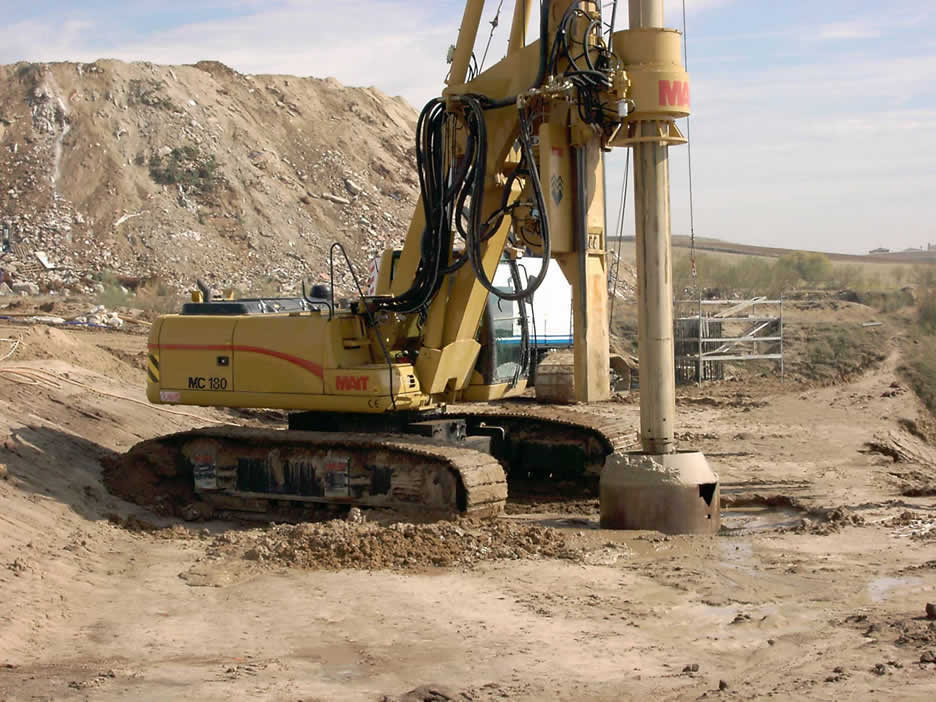

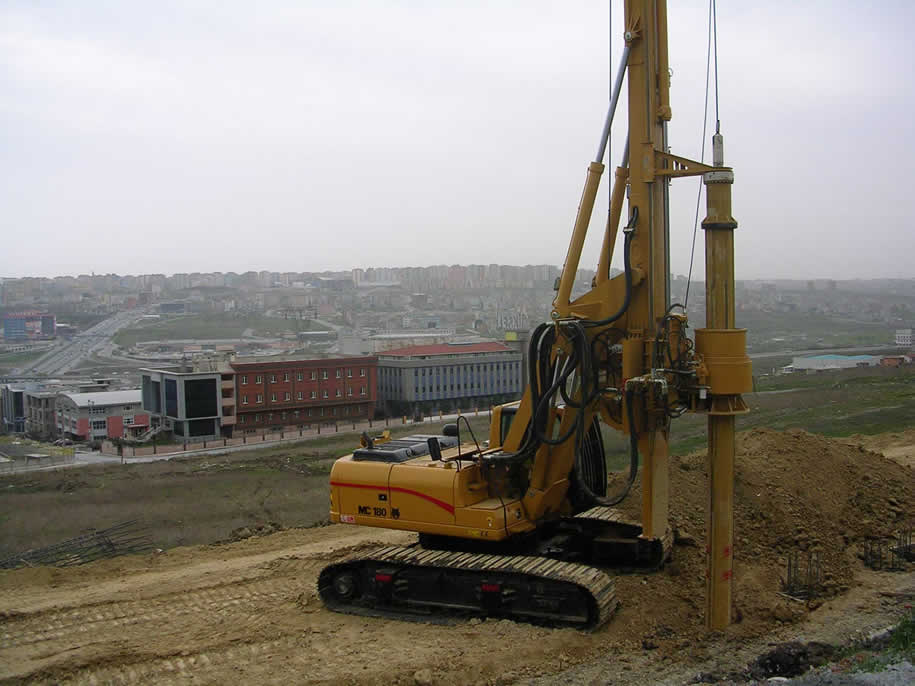

Media Gallery
