BORED PILES » MC 230

Main specs overview

  • Model name
  • MC 230
  • Category
  • BORED PILES
  • Max torque
    (KNm)
  • 235
  • Max Diameter
    (mm)
  • 2000
  • Max Depth
    (m)
  • 70
  • Weight
    (ton)
  • 72 - 75

More details

Description

MAIT, a world-leading manufacturer of hydraulic drill rigs is pleased to introduce our latest line of drill rigs called MC.
The MC 230 has been designed to guarantee better productivity in drilling of medium and large diameter drilled shafts, with maximum running economy.
The MC 230 have a relatively compact size allowing easy transportation and positioning in the jobsite.
The MC 230 utilizes a CAT excavator base mounted on MAIT’s specifically designed expandable crawler base which offers greater stability and enormous advantages for drilling contractors.
The cabin is spacious, comfortable and equipped with heating and air conditioning, ensuring a better working environment for the operator.

Technical data

Rotary
Nominal Torque 235 KNm 173,300 lbsft
Nominal Pull-Back/Pull-Down 400 - 350 KN 90,000 - 78,750 lbs
Unloading Speed 115 rpm
Stroke 6.500 mm 21.5 ft
Winches
Main Winch Nominal Pullback 235 KN 52,875 lbs
Secondary Winch Nominal Pullback 97 KN 21,825 lbs
Engine
Brand CATERPILLAR
Model C9
Power 250 KW @ 2.100 rpm 335 HP @ 2,100 rpm
Hydraulic System
Hydraulic Oil Tank 310 liters 82 gal
Fuel Tank 615 liters 162 gal
Crawler
Length 5.450 mm 17.8 ft
Width 3.000 - 4.300 mm 10 - 14 ft
Shoes 900 mm 3 ft
Weight
Approx Weight 72 - 75 ton 161,280 - 168,000 lbs

Working characteristics

Works with Augers & Buckets
Max Diameter 2.000 mm 6.56 ft
Depths 60 - 70* m 197 - 229.6* ft

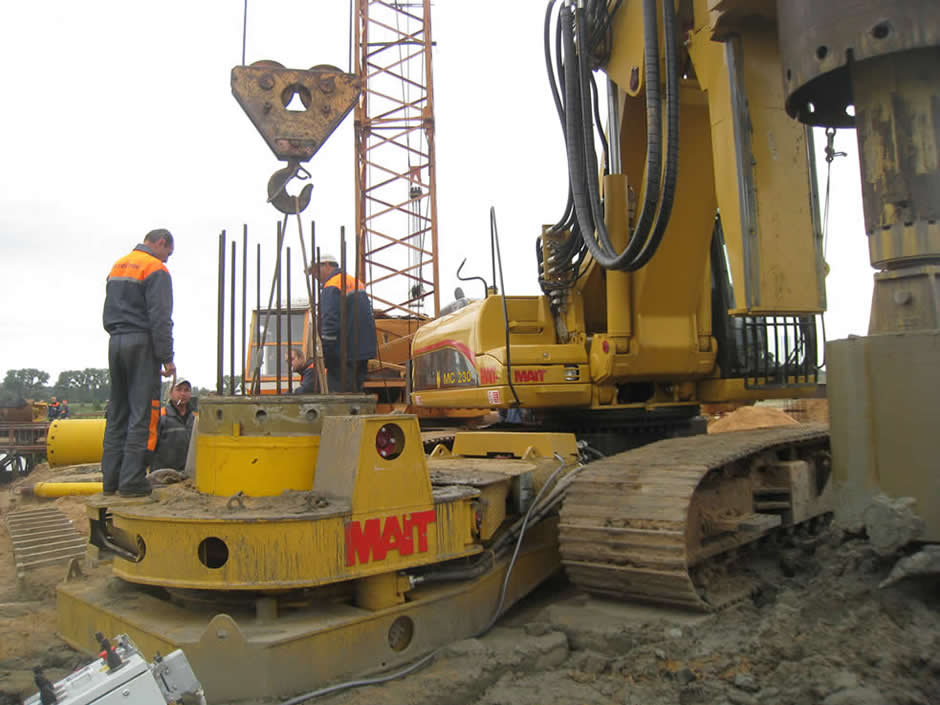

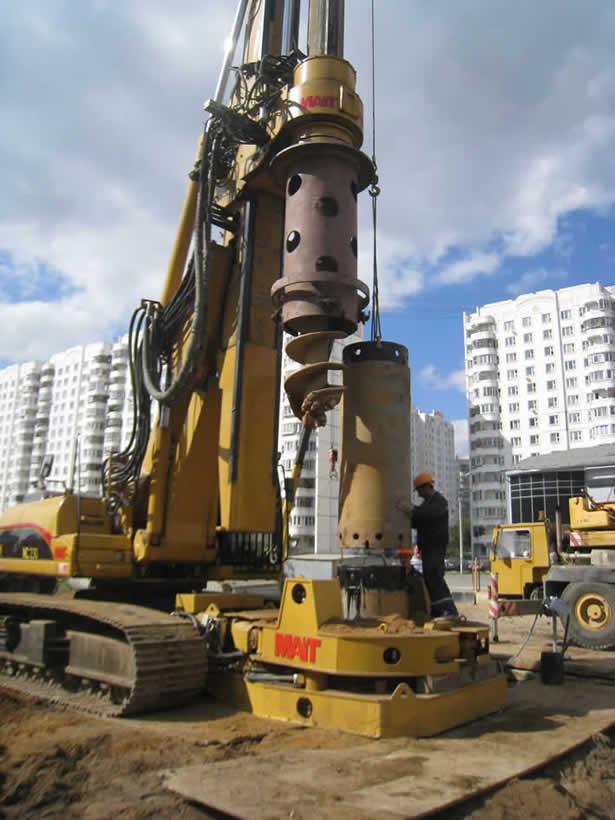

Works with Casing Oscillator
Max Diameter 1.600 mm 5.2 ft
* on request with main bigger winch
